Condux Power Dart Blower pneumatic rodding system 220V
Condux Power Dart Blower pneumatic rodding system 220V


Code: 08030004
Brand: Condux
Product Details
Blower, power dart, pneumatic rodding, 3 motors, 8.5m3/min at 3psi max, 220v, Condux

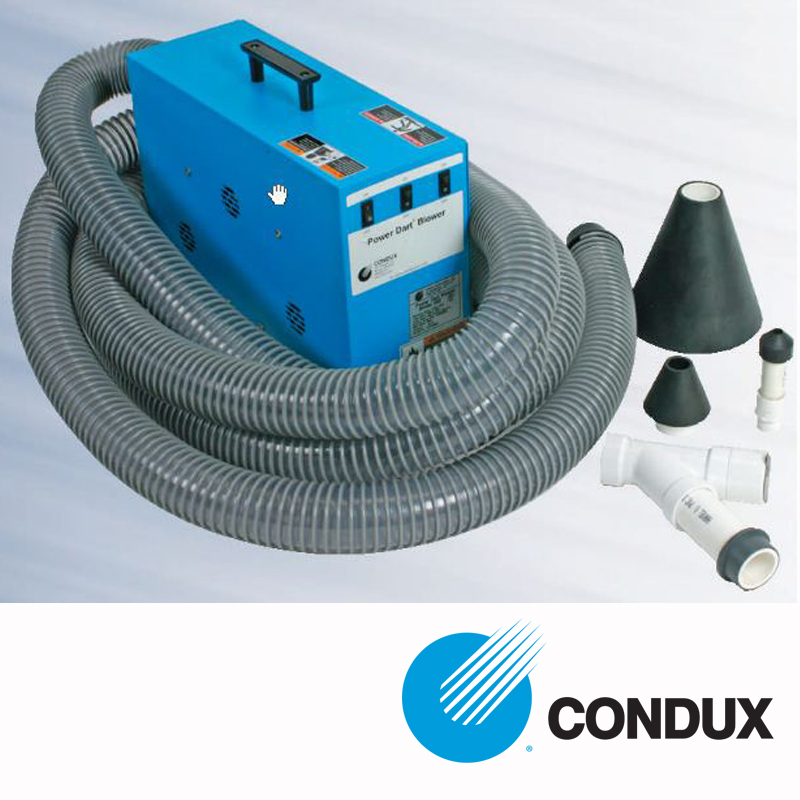

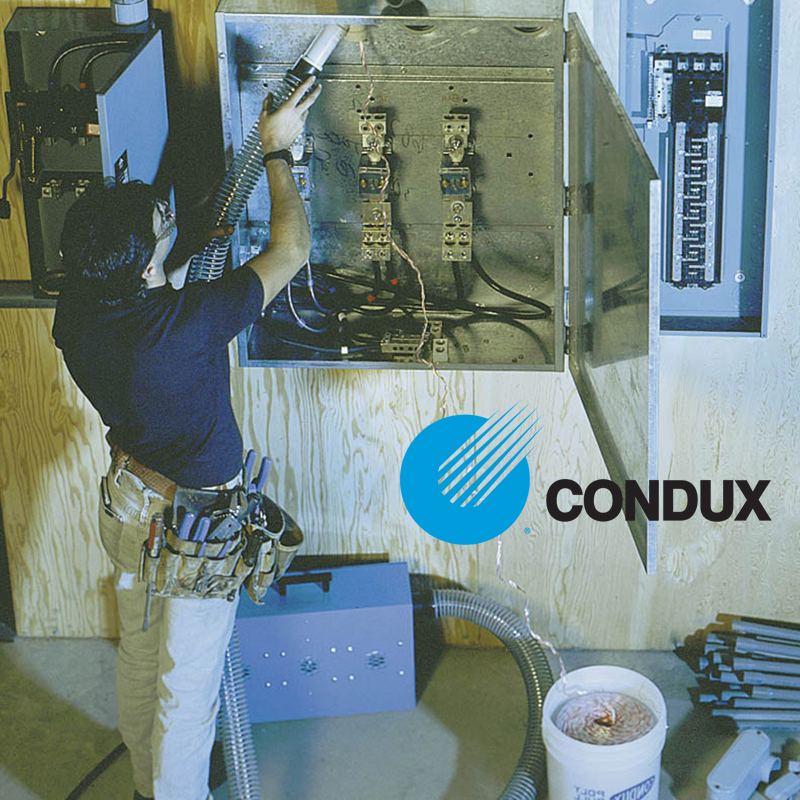

The Condux Power Dart Blower is a pneumatic rodding system especially suited for long duct runs.

A three-motor system allows you to choose the correct pressure output for your needs. With all three motors engaged, the Power Dart Blower will deliver up to 300 cfm (8.5m3/min) of air at 3psi maximum pressure. This will easily blow 13mm line or measuring tape over 610m. The main unit weighs a mere 14kg and a variety of part sizes are available to suit your duct sizing.

  • Compressed air system for long duct runs in up to 152mm diameter conduit
  • Blow 13mm line or measuring tape over 610m
  • Three-motor system allows choice of speed
  • Can deliver up to 300cfm/8.5m3/min of air at 3psi/0.2bar maximum pressure
  • Main unit weighs only 14kg
  • Operates at 220V

Part No

Description

08030004

220V Power dart blower unit, hose, body seal-off & seal-offs for 13mm - 152mm conduit.
*Carriers not included.





Part No

Description

08030060

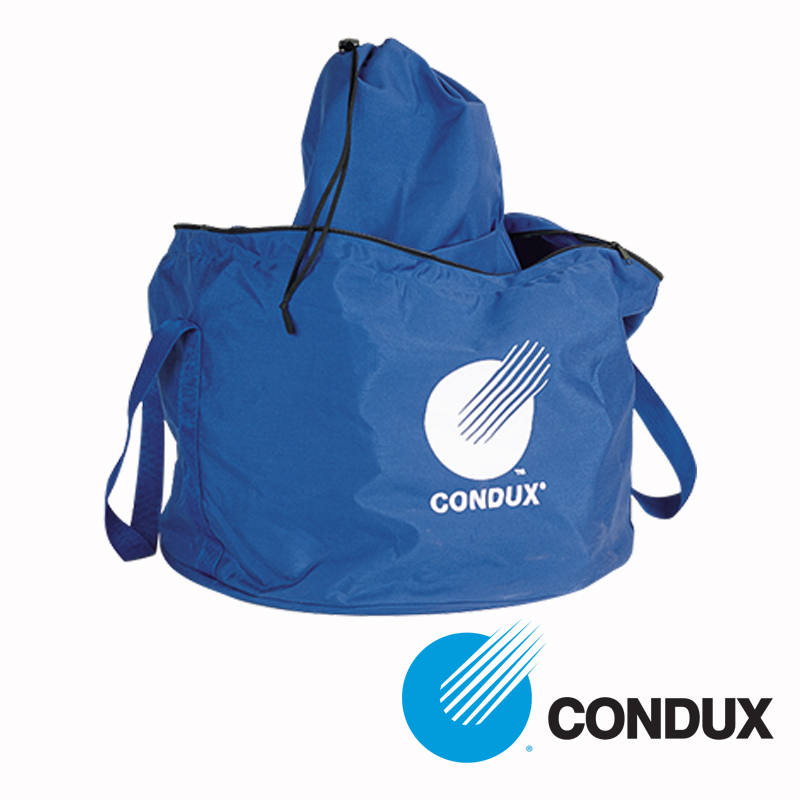

Power dart blower accessory bag





Part No

Description

08030011

Carrier kit for power dart blower

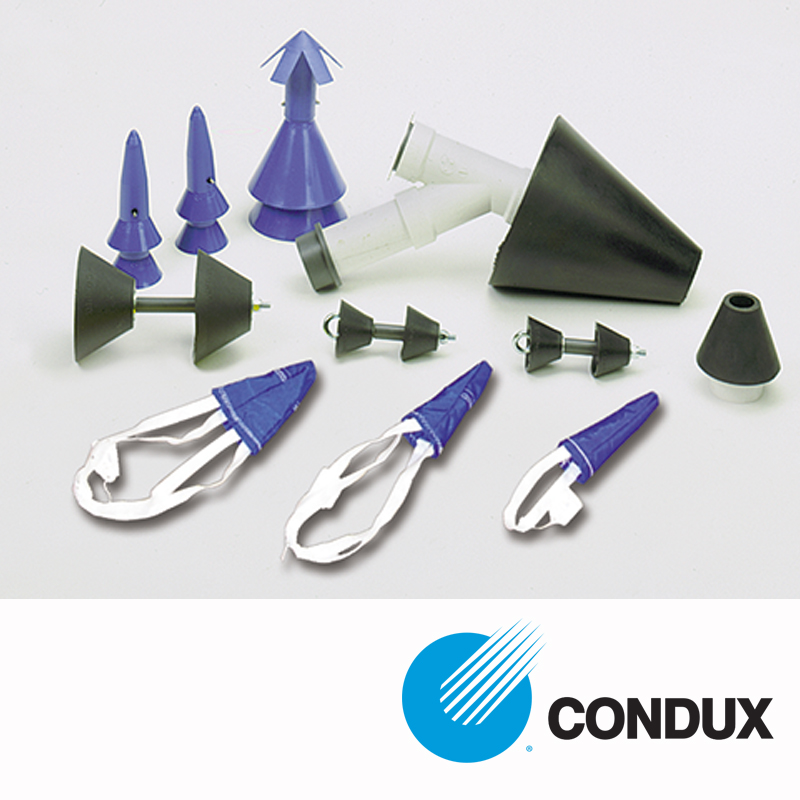

PARTS IN CARRIER KIT

Part No

Description

Qty

08067900

51mm Line Carrier

2

08030300

102mm Line Carrier

1

08031820

51mm Duct Projectile

2

08031840

102mm Duct Projectile

1

08033532

Carrier, Chute 2.00 Nylon

1

08033548

Carrier, Chute 3.00 Nylon

1

08033564

Carrier, Chute 4.00 Nylon

1

08039400

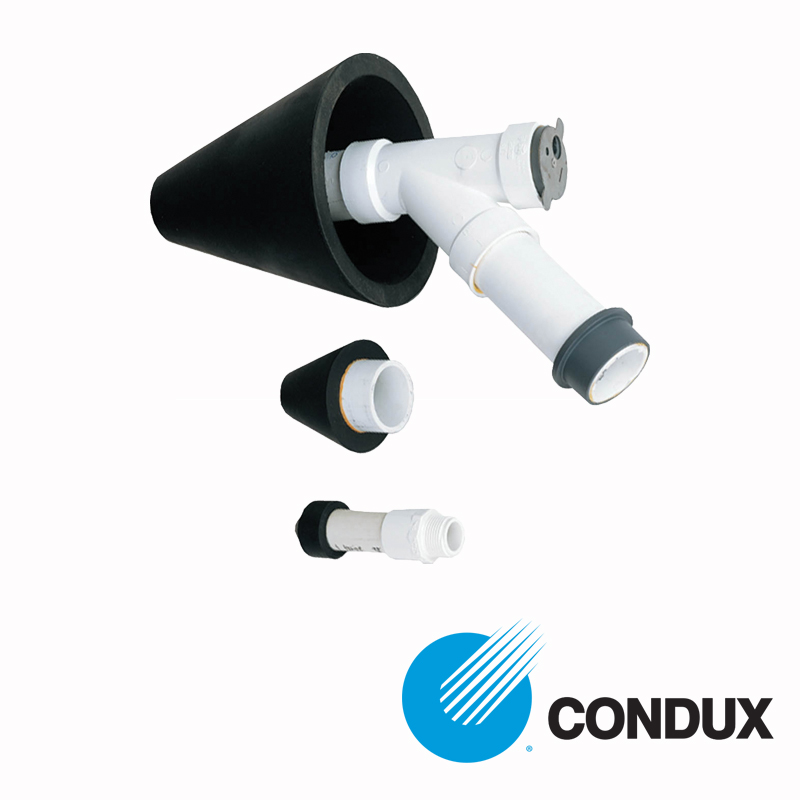

Seal-off Body Handle

1

08066800

Power Dart Seal-off 38-64mm

1

08039500

Power Dart Seal-off 64-152mm

1

*Bag sold separately



Accessories

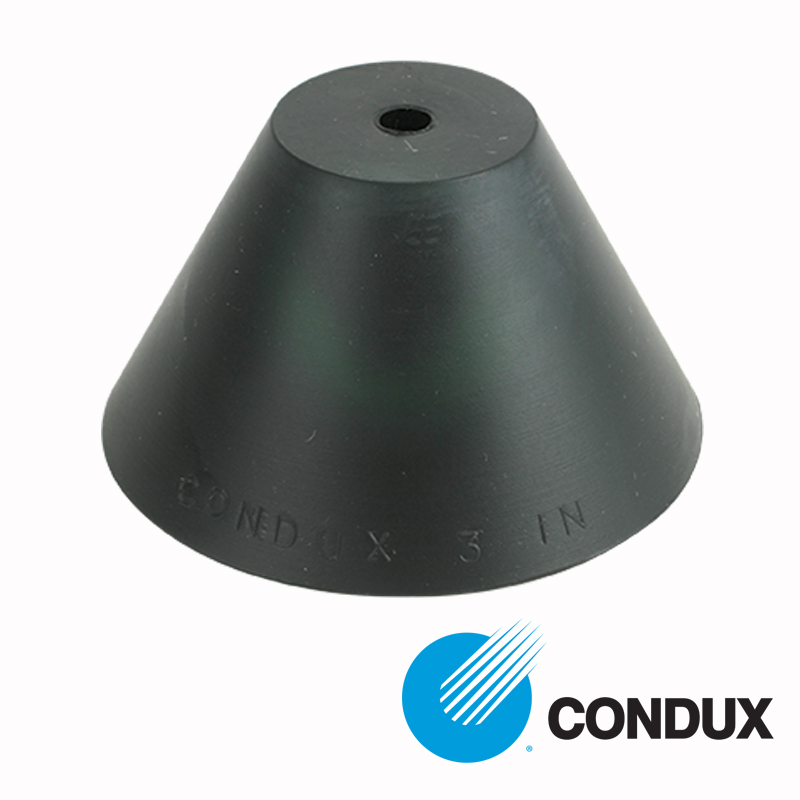

Replacement Cones also available for Duct Projectile.

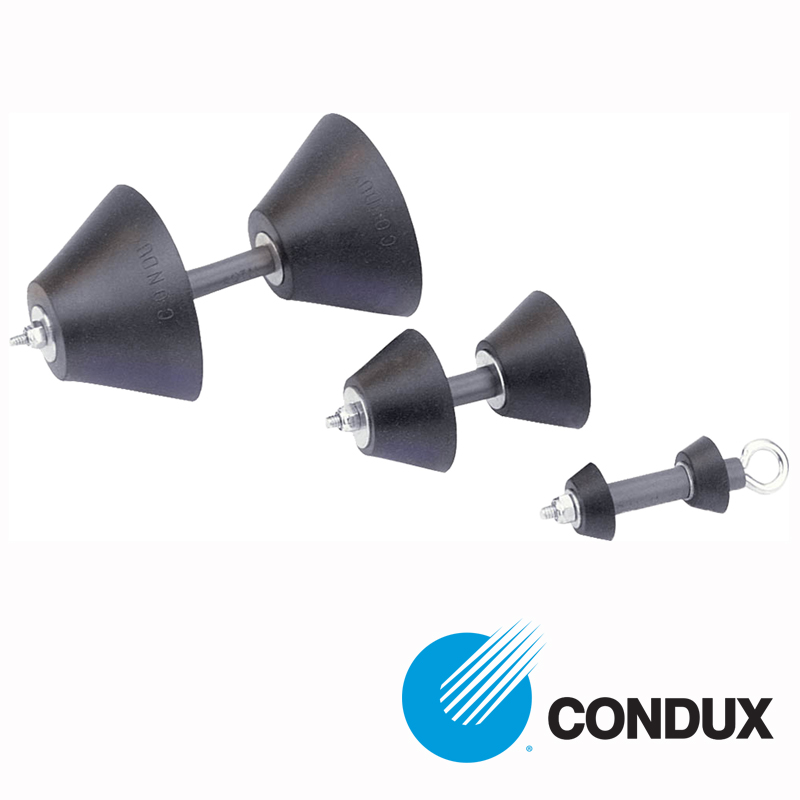

Flexible rubber duct projectile cones are durable for many repeated uses.
These projectiles are fast & efficient for long runs with easy pull back.
Rubber duct projectiles range in size from 1 1/4 Inch to 8 Inches.

Duct Projectile Options

Part No

Size

08031820

51mm

08031830

76mm

08031840

102mm

08031850

127mm

08031860

152mm

08031880

203mm

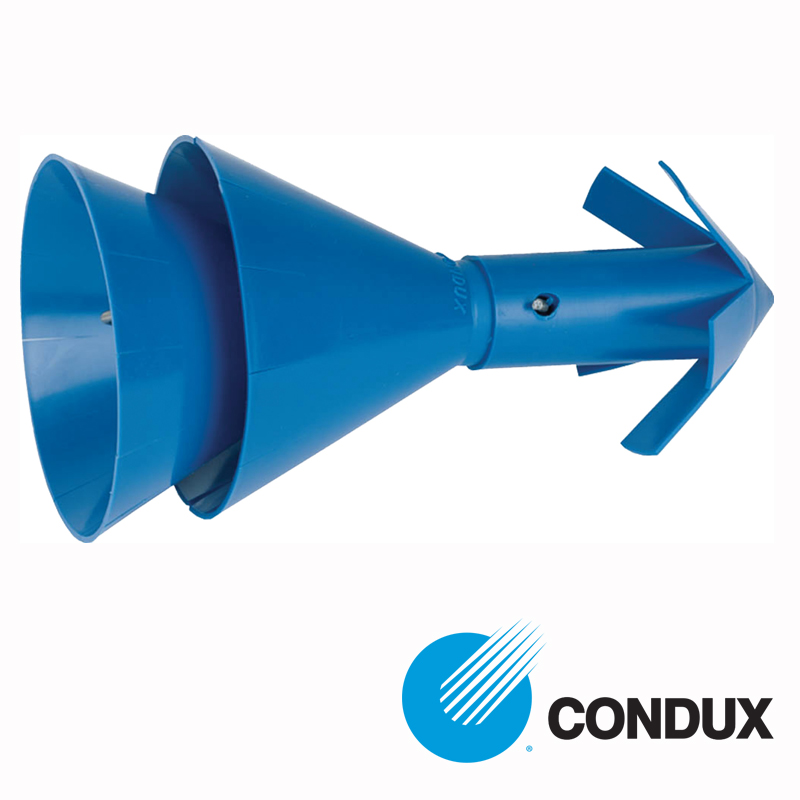

Fast and efficient plastic missile line carriers for conduit fishing with high speed blowers even in out of round duct.
Line Carrier range in size from 2" to 6" and will travel over minor obstruction in duct.

Line Carrier Options

Part No

Line Carrier Size

08067900

51mm

08030100

76mm

08030300

102mm

08030400

127mm

08030500

152mm

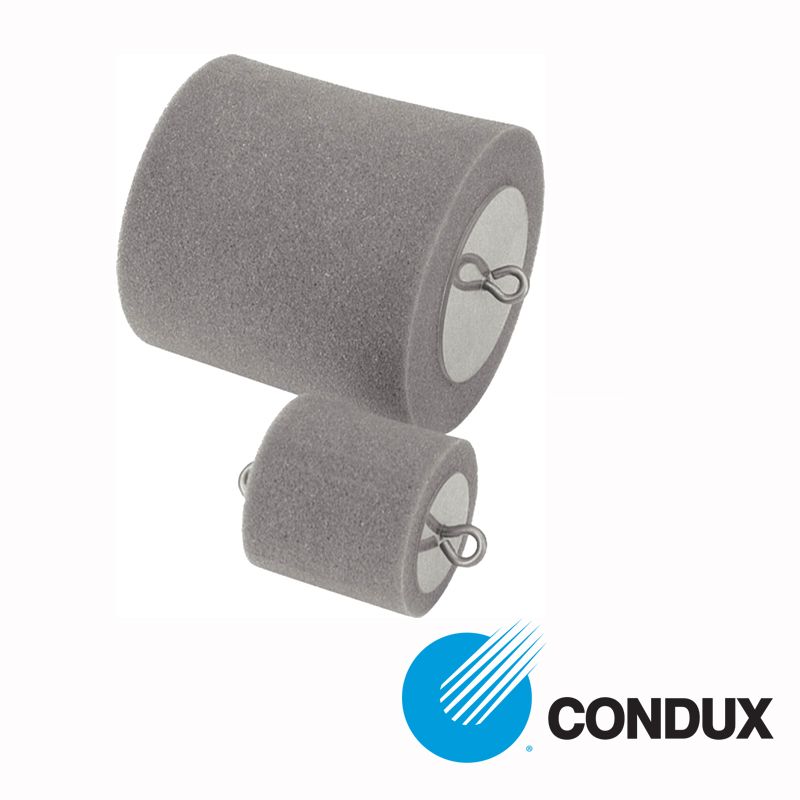

Lightweight foam conduit line carrier easily blows through duct. Best suited for short runs and runs with multiple bends.

Foam Carrier Options

Part No

Foam Carrier Size

08032200

25mm

08033600

30mm

08039800

38mm

08033500

45mm

08032400

51mm

08032500

76mm

08033900

80mm

08032600

102mm

08059100

127mm

08059200

152mm

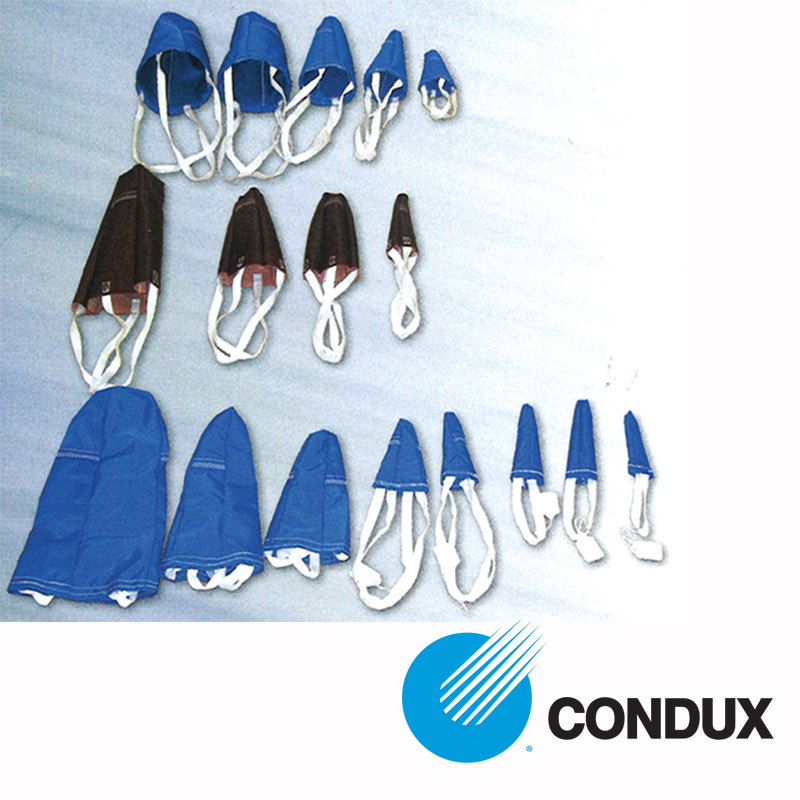

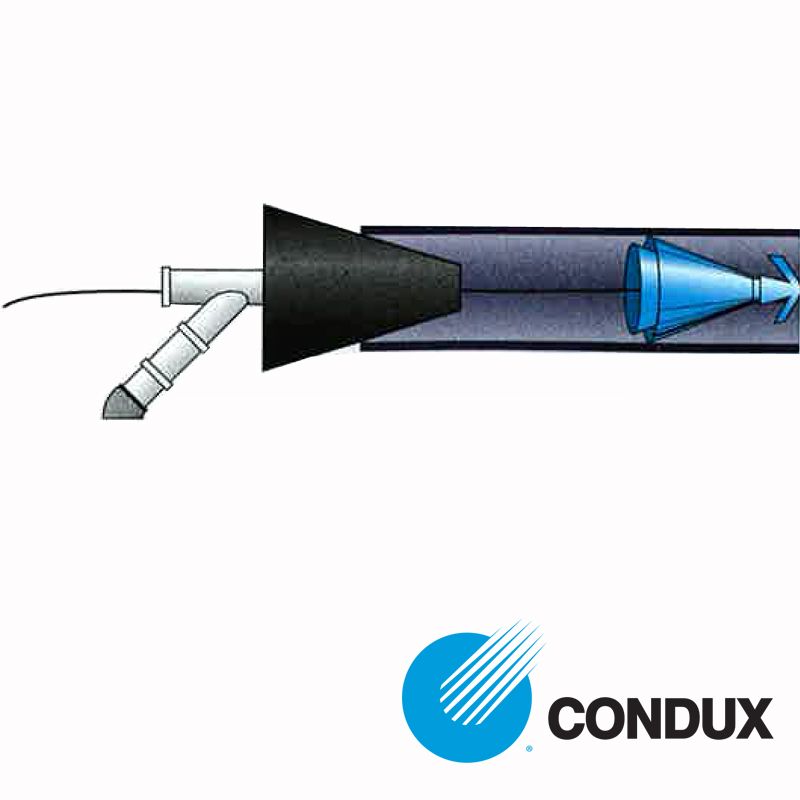

Tie a line or webbing to a chute, insert the chute into the conduit or duct, and blow compressed air propelling the chute to the end of the duct.

Cable Chute Line Carrier Options

Part No

Carrier, Chute Inches/mm

08033532

2.00 Nylon

08033548

3.00 Nylon

08033564

4.00 Nylon

08033580

5.00 Nylon

08033596

6.00 Nylon
