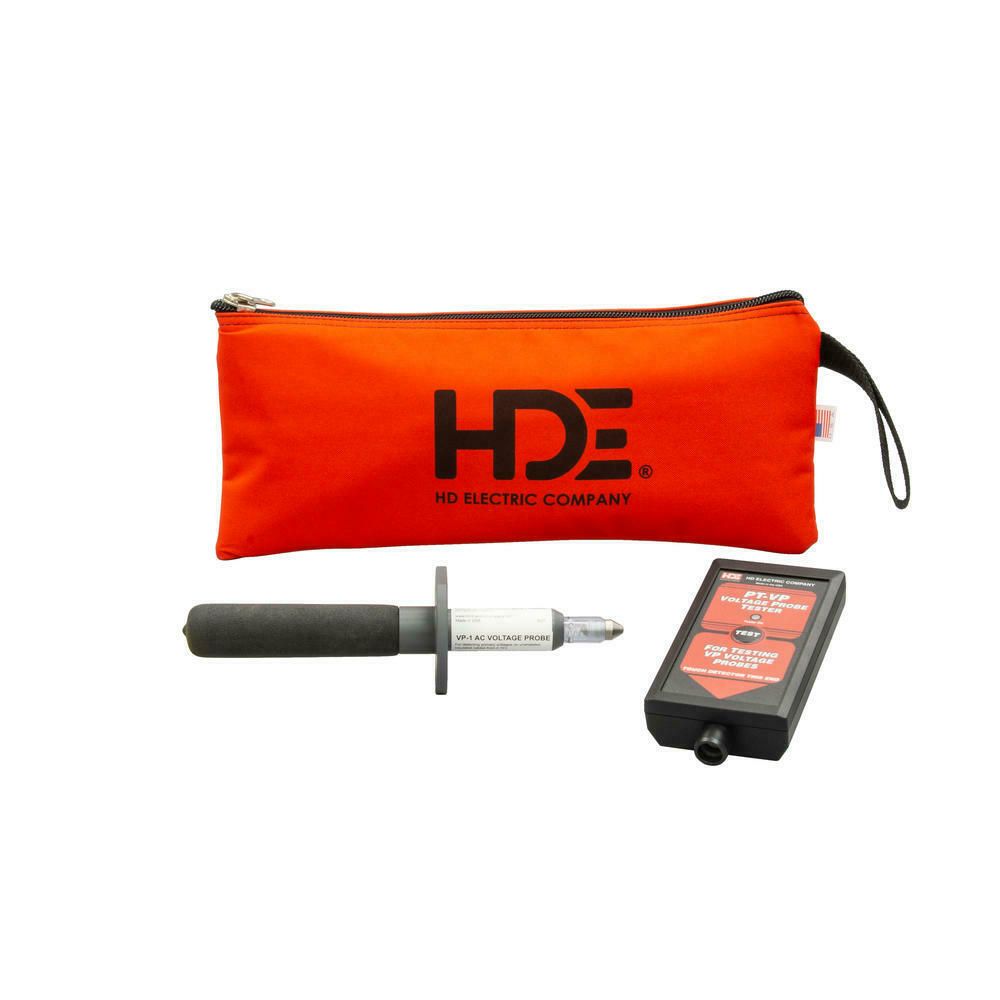

Voltage probe, 50VAC to 600VAC, proximity to 21kVAC, carry bag, HDE
Voltage probe, 50VAC to 600VAC, proximity to 21kVAC, carry bag, HDE


Code: VP-1-K01
Brand: HD Electric
Product Details
Voltage probe, 50VAC to 600VAC, proximity to 21kVAC, carry bag, HDE


Voltage Probe 50 - 600V (up to 21kV*) - HDE

Part No. VP-1-K01

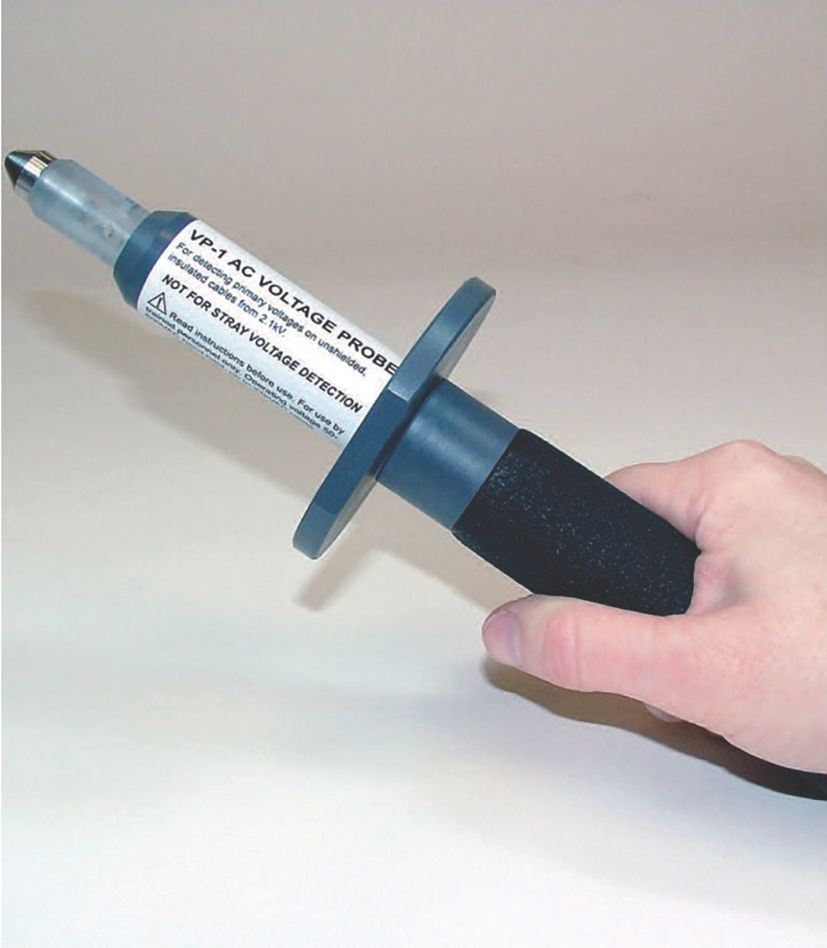

The VP-1 is designed for general-purpose voltage detection with direct contact on secondary voltages and for use in detecting primary voltages in underground cables on unshielded portions over the cable insulation.
The VP-1 Voltage Probe is designed to be used as a handheld direct contact secondary voltage detector from 50VAC to 600VAC. It can also be used as a proximity voltage detector for voltages exceeding 21kVAC* when using appropriately rated electrical insulating gloves.
The VP-1gives a flashing red light and beeping indication when voltage is detected.
The VP-1 should be tested before and after use with the accessory PT-VP Voltage Probe Tester.
• Tests exposed metallic surfaces and conductors for the presence of secondary voltage
• Tests unshielded primary voltage cable insulation
• Tests primary voltage joint and termination test points for the presence of voltage
• Simple indication of voltage – flashing red light and beeper
• Compact, lightweight and easy-to-use
• No on/off switch – always on
• Super bright LED indicator
• Low battery indicator - when flashing light is no longer visible
• Powered by 2 AA field-replaceable lithium or alkaline batteries
Part No.VP-1 - Voltage Probe
Operating Voltage50 - 600V handheld - 600V - 21kV line to ground using appropriate insulating equipment*
Power Supply2 x AA field replaceable batteries
Output Frequency50Hz
Weight (kg)0.27
Dimensions (mm)254
