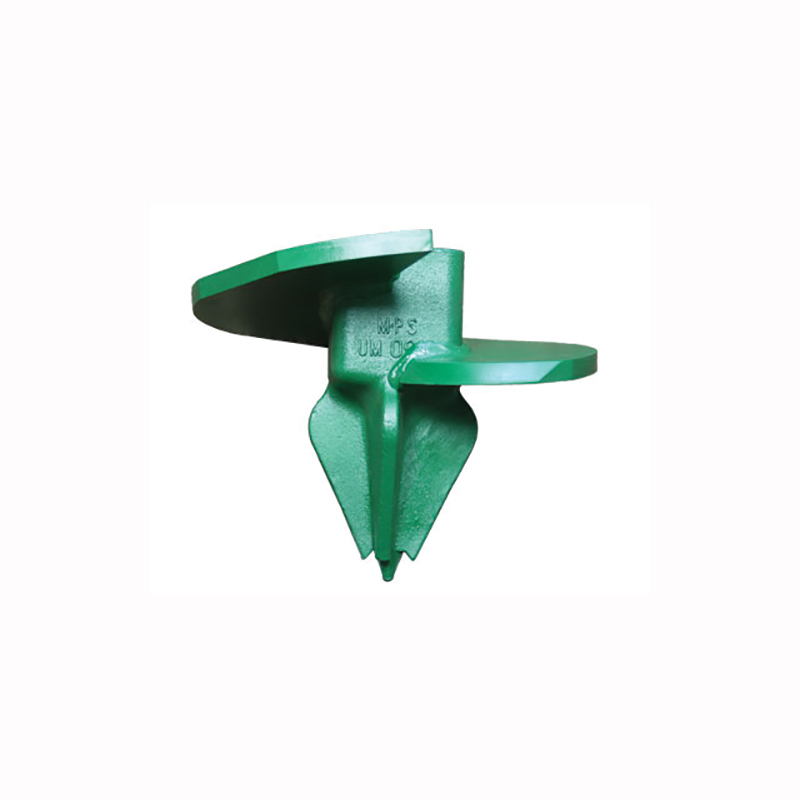

Screw Anchor Single Helix
Screw Anchor Single Helix
Code: TD225-84M24
Brand:
Product Details
Anchor, screw, single helix, turbo, 200mmD, M24, 13.6KnM, Maclean
Brand:
Product Details
Anchor, screw, single helix, turbo, 200mmD, M24, 13.6KnM, Maclean
Utility Power Hub Anchors
- Used for tough soils where the solid hub anchors cannot be installed
- One piece cast steel hub for increased torque and bending strength
- Four flute hub to break up tough soils
- Install 57mm (2 1/4") with standard power installed anchor installing tool
- All of the power installed anchor rods are used with the Turbo Drive® anchor
- Standard Turbo Drive® anchors are used with 9.5mm (3/8") helix
- Heavy duty Turbo Drive® anchors are used with 12.7mm (1/2") helix
Standard 57mm (2-1/4”) Turbo Drive™ Socket Drive
13.6kNm Ultimate Installing Torque
9.5mm (3/8”) Helix for Standard Installing Tool
| Part # | Helix Diameter | Tapped for Rod Size | Weight |
|---|---|---|---|
| TD225-64M24 | 150mm | 19 - 25mm (3/4 or 1”) | 3.8kg |
| TD225-84M24 | 200mm | 19 - 25mm (3/4 or 1”) | 4.5kg |
| TD225-104M24 | 250mm | 19 - 25mm (3/4 or 1”) | 6.2kg |
