Screw Anchor Single Helix

Screw Anchor Single Helix

Code: TD225-64M24
Product Details

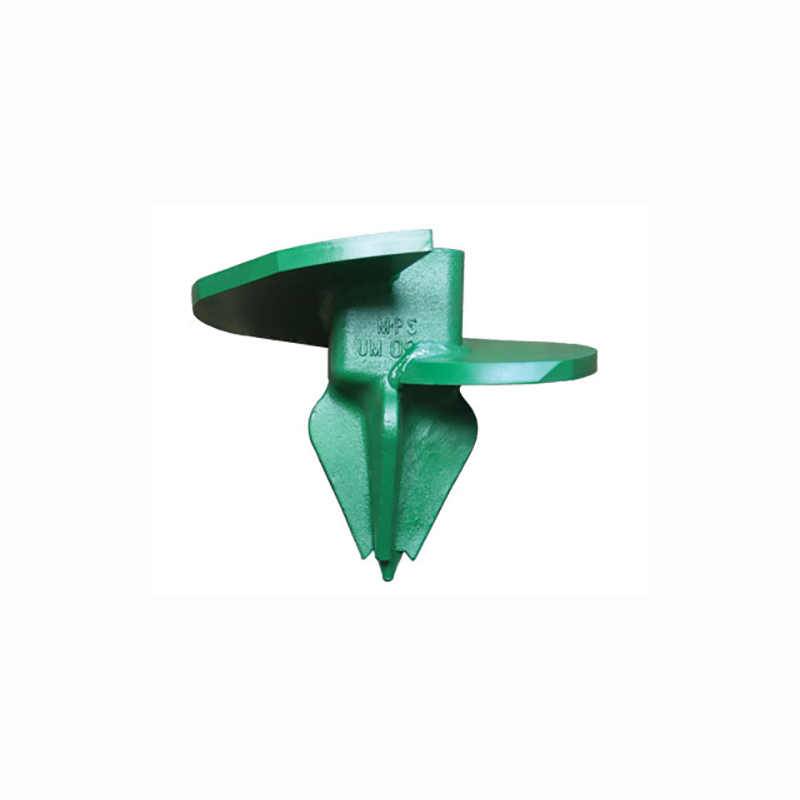

Anchor, screw, single helix, turbo, 150mmD, M24, 13.6KnM, Maclean

Utility Power Hub Anchors

  • Used for tough soils where the solid hub anchors cannot be installed
  • One piece cast steel hub for increased torque and bending strength
  • Four flute hub to break up tough soils
  • Install 57mm (2 1/4") with standard power installed anchor installing tool
  • All of the power installed anchor rods are used with the Turbo Drive® anchor
  • Standard Turbo Drive® anchors are used with 9.5mm (3/8") helix
  • Heavy duty Turbo Drive® anchors are used with 12.7mm (1/2") helix

Standard 57mm (2-1/4”) Turbo Drive™ Socket Drive
13.6kNm Ultimate Installing Torque
9.5mm (3/8”) Helix for Standard Installing Tool

Part # Helix Diameter Tapped for Rod Size Weight
TD225-64M24 150mm 19 - 25mm (3/4 or 1”) 3.8kg
TD225-84M24 200mm 19 - 25mm (3/4 or 1”) 4.5kg
TD225-104M24 250mm 19 - 25mm (3/4 or 1”) 6.2kg
