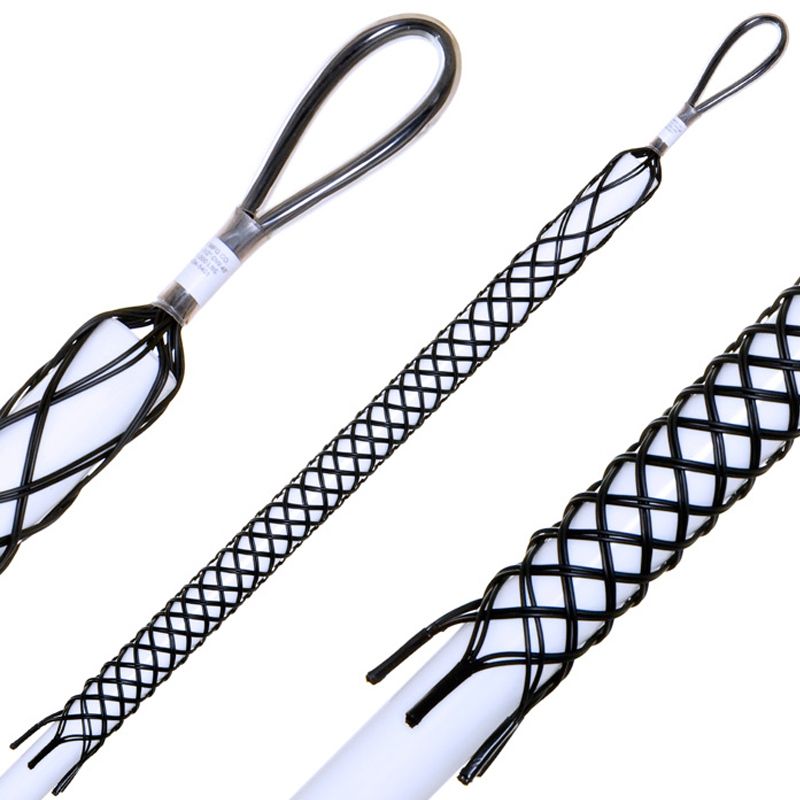

Sock, cable, single, soft eye, 101-127mm, 70kN UTS, 1.5m L, non metallic, aramid, Lewis

Sock, cable, single, soft eye, 101-127mm, 70kN UTS, 1.5m L, non metallic, aramid, Lewis


Code: TCS-OU101
Brand: Lewis
Product Details
Sock, cable, single, soft eye, 101-127mm, 70kN UTS, 1.5m L, non metallic, aramid, Lewis


Non-metallic cable socks are made of plastic coated Aramid fibres that are light weight, yet much stronger than steel wires. Aramid are a class of heat-resistant and strong synthetic fibres used in aerospace and military applications. These grips are traditionally used in overhead or underground operations when pulling or suspending electric or fibre optic cable.

  • Non conductive
  • Much lighter yet stronger than steel grips
  • Can be used in essentially all grip configurations
  • Easier to load and remove
  • No frayed wires
  • No wire cuts and contusions
  • Non-Metallic Aramid Fibre

SPECIFICATIONS

Part # Size UTS Length
TCS-OU06 6-19mm 11kN 735mm
TCS-OU19 19-26mm 16kN 735mm
TCS-OU26 26-38mm 44kN 1270mm
TCS-OU38 38-51mm 53kN 1270mm
TCS-OU51 51-64mm 70kN 1400mm
TCS-OU64 64-76mm 70kN 1500mm
TCS-OU76 76-101mm 70kN 1500mm
TCS-OU101 101-127mm 70kN 1500mm
