50kN Tesmec Electric Cable Pulling Machine, zero emission
Brand: Tesmec
Product Details
Puller, electric, max pull 50kN, max speed 70m/min, max rope 13mm/950m, Tesmec

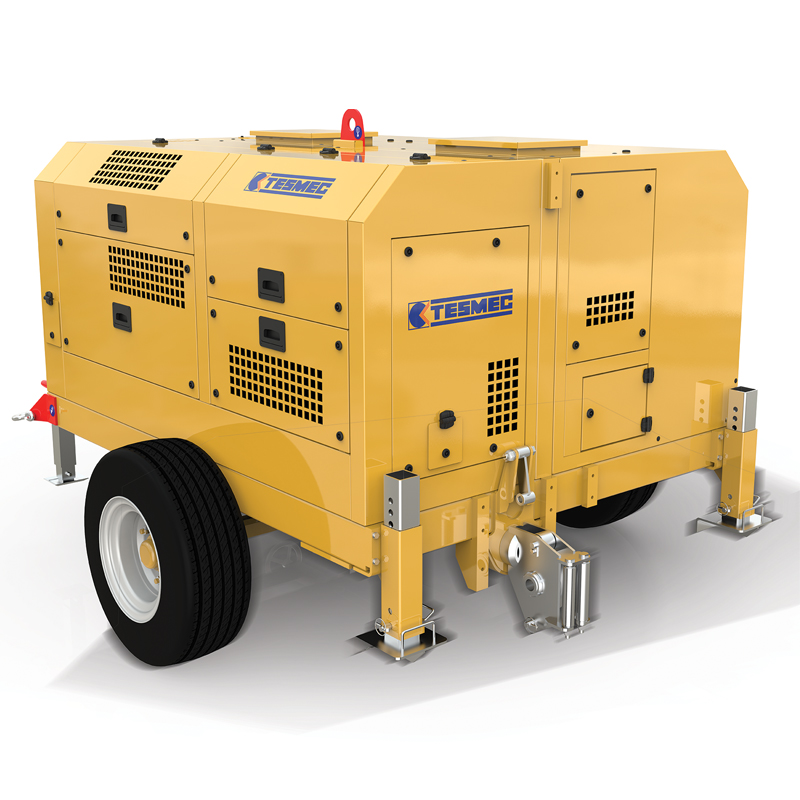

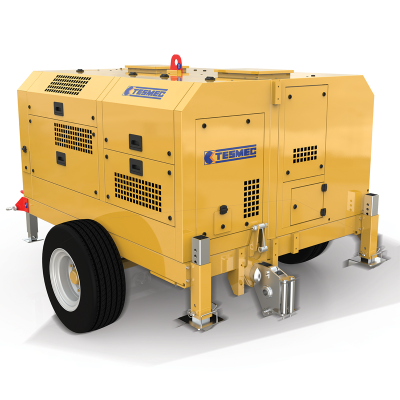

Tesmec PE1250 Electric Puller
The new TESMEC PE1150 and PE1250 all-electric pullers are industry exclusive. With an electric motor, they eliminates the need for hydraulic components such as hydraulic motors, pump and valves, and requires no oil.
These machines represent the best choice for underground cable laying and pipe refurbishment and are the perfect choice especially in urban areas and tunnels, where the regulations on emissions and safety are strict.
PE1150 (max pull 30 kN) and PE1250 (max pull 50kN) green solutions have no heat engines on board, battery storage (LiFePO4) and plug-in charging system.
These new machines give birth to a new generation of environment-friendly solutions, making a statement about Tesmec's sustainability, research and technological capabilities.
Image right: Link to video of Tesmec Full Electric machine on-site in Norway
Features
- Zero Emissions
- No Hydraulic Oil
- Silent Running
| Performance | |
|---|---|
| Maximum Pull | 50kN |
| Speed at maximum pull | 10m/min |
| Max Speed | 70m/min |
| Pull at maximum speed | 5kN |
| Free wheel max speed | 70m/min |
Note: the basic machine performance is calculated at 20°C and at sea level.
| Specification | |
|---|---|
| Bull wheel diameter | 300mm |
| Maximum rope diameter | 13mm |
| Weight (without rope) | 2350kg |
| Number of Grooves | 8 |
| Suitable for | 1 rope |
| Layout | Single |
