Phasing, Voltage & Multifunction, Digital, 0-50kV, 3kV Power Supply, Cables, Probes & Storage Case, Bierer
Phasing, Voltage & Multifunction, Digital, 0-50kV, 3kV Power Supply, Cables, Probes & Storage Case, Bierer


Code: PD50
Brand: Bierer
Product Details
Voltmeter, phasing, digital, 0-50kV, 3kV power supply, cables, probes, case, Bierer


  • Completely shielded interconnect cable (insulated 35kv to ground), that does not have to be held off of grounded or live objects for fear of shock or interfering with the reading
  • Multiple ranges 2kV, 20kV, 25kV (PD50 to 50kV)
  • Interconnect cable lengths up to 30m
  • Patented input circuitry
  • Both probes impact and water resistant
  • LV-HV Meter with multimeter functionality
  • Large easy to read display with backlight

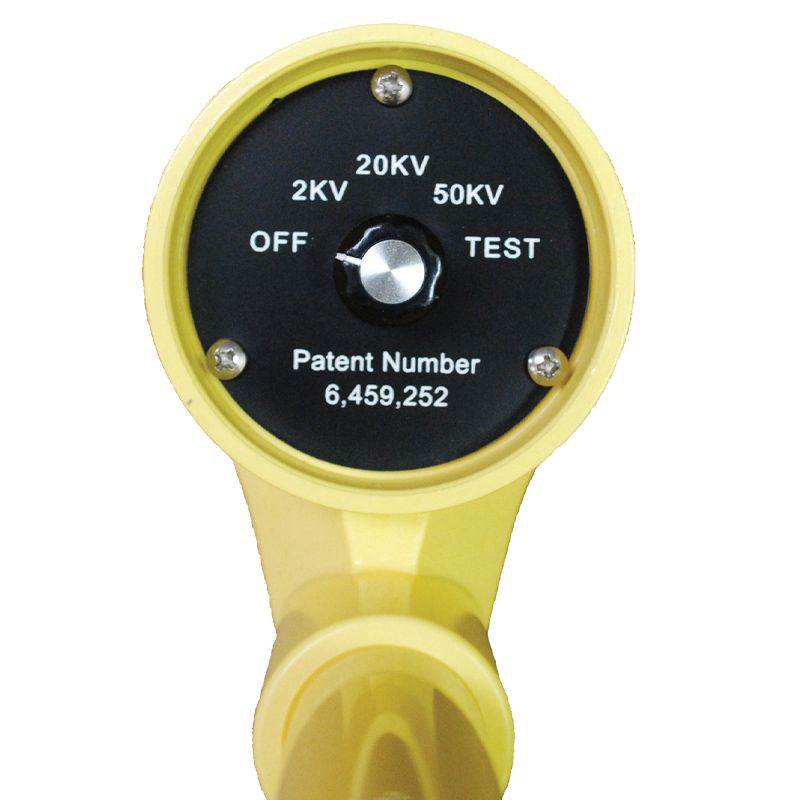

  • Manual selection modes: OFF, 2, 20, 25/50 & TEST
  • Self test function tests internal circuitry/displays battery voltage
  • Impact and water resistant
  • Supplied in case
  • Adaptors available

MODES:

  • OFF - For Storage
  • 2kV - Range 0-1999 Volts
  • 25kV - Range 0-24990 Volts
  • 50kV - Range 0-49900 Volts
  • Test - Tests internal meter circuitry and displays battery voltage

For use on 3 phase secondary systems, capacitive test points, URD systems, overhead and transmission substation systems

NUMEROUS APPLICATIONS:

  • Capacitive Test Points Phasing Meter
  • Regulator Neutral Detector
  • Measure True RMS Voltages
  • Commercial Industrial Meter
  • Phasing or Measuring Secondary Voltages, Replacing 600V Voltmeters
  • Conventional Phasing Voltmeter for Overhead and URD Systems from 0-25kV Phase to Phase
  • DC and Multiple Frequency AC up tp 400Hz
  • High Line Resistive Voltmeter
  • Phase Sequence/ Rotation Meter*
  • DC Leakage Tester (Lightning arrestor tester)*
  • Hi-Pot URD Cable*
  • DC Cable Tracer*

*Optional Adaptor Required

Part No

Voltage Range AC (kV) Contact

Ø – Ø

Ø - ±

PD25AU/ PD25A

0 – 25*

0 - 14.4

PD50AU

0 – 50*

0 – 28.9



Kit Details

Specifications

PD25AU*

PD25A*

PD50AU*

Meters

LCD Display

Yes

Yes

Yes

Reference

Yes

Yes

Yes

Probes

Hook

Yes

Yes

Yes

Straight

Yes

Yes

Yes

Cable

Interconnect

Yes

Yes

Yes

Adaptor

Shotgun/ Universal

Yes

Yes

Yes

Storage Included

Case

Bag

Case

Weight

6.3kg

6.3kg

6.3kg

* Each unit capable of additional 50kV voltage range with purchase of # 81280ER, pair of extension resistors. Both units decrease in accuracy to +/- 5%.

- PD25 increases to 75kV and display reading must be multiplied by 3

- PD50 increases to 100kV and display reading must be multiplied by 2

Measures AC or DC voltage with unbelievable precision and accuracy. May be used on primary or secondary voltages or capacitive test points. There is nothing to compare to it on the market today!
