Hoist, ratchet, web, single 3m 750kg, 200kg lift, double 1.5m 1500kg, 400kg lift, NGK

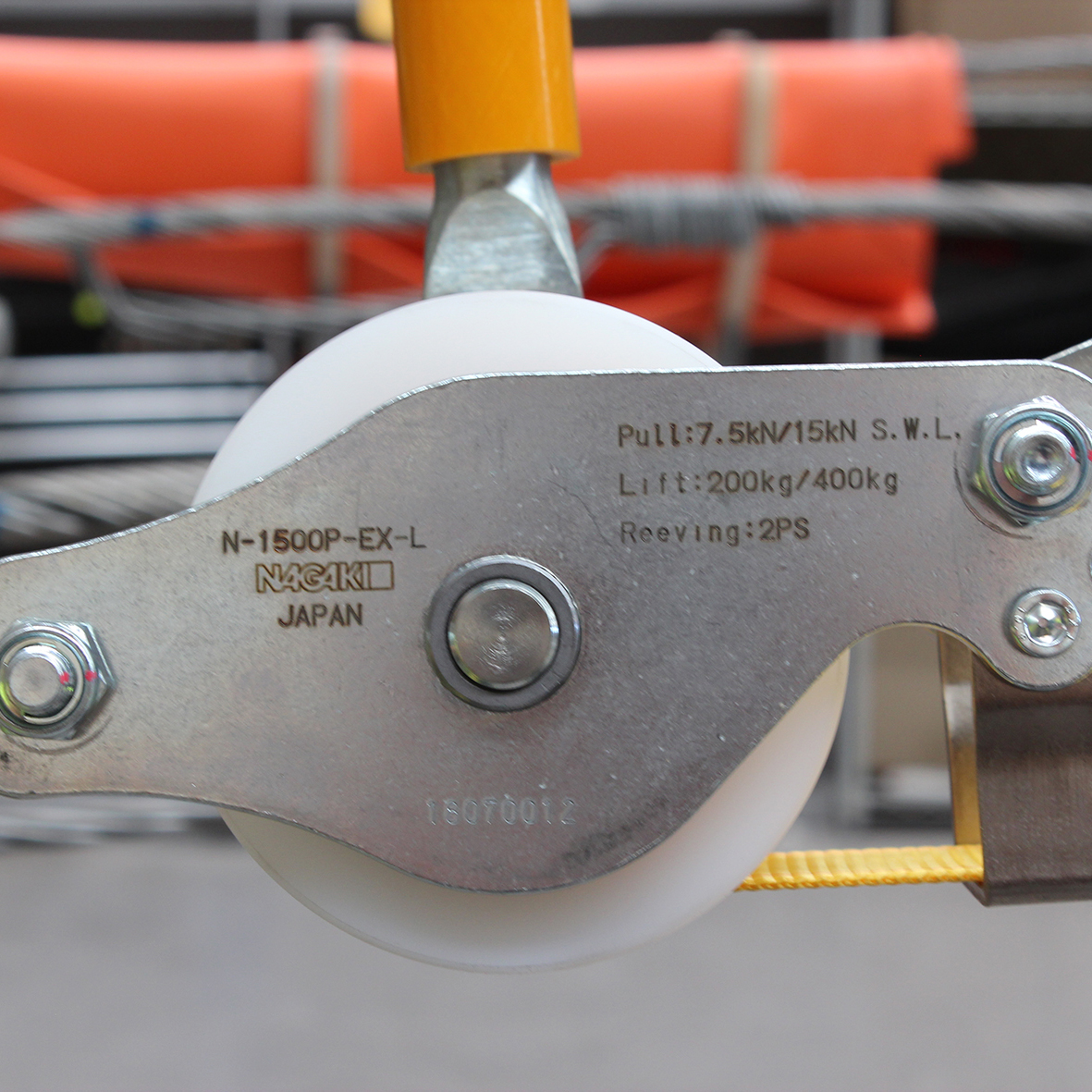

Nagaki NGK N-1500P-EX-L
Web Strap Ratchet Hoists

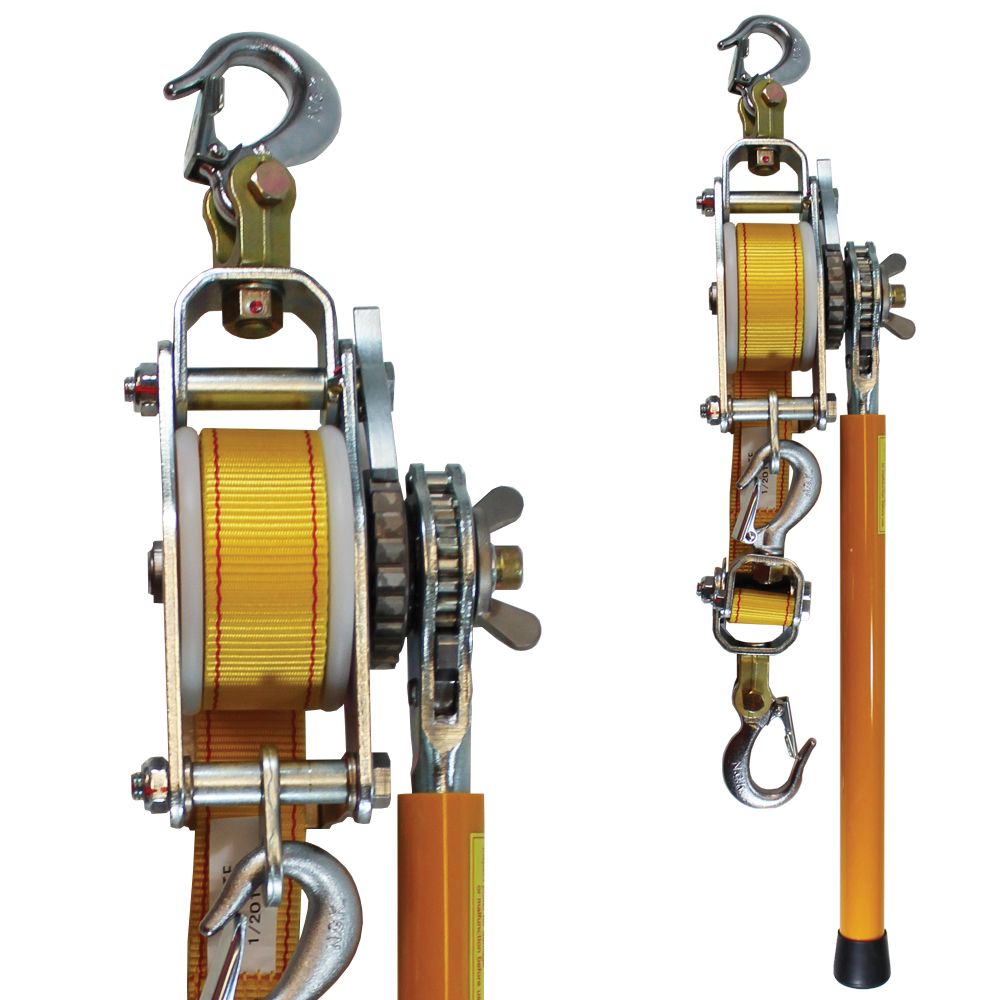

The Nagaki N1500P-EX-L is a lighweight hoist with a lifting capacity of 400kgs in a double line configuration. Specifically designed for use where line crews need to lift hardware during installation.
The NGK Lifting web strap hoists feature super-strength 40mm wide web straps, insulated fiberglass handles and a special handle neck that will bend if the unit is overloaded to prevent damage to the puller and injury to the operator.
| Part No | WLL (T) | Min Pull (mm) | Max Pull (mm) | Handle Length (mm) | Wt (kg) |
|---|---|---|---|---|---|
| N-1500P-EX-L | Pulling: 0.75 Single 1.5 DoubleLifting: 200kg Single 400kg Double | 500 | 2000 Double3500 Single | 460 | 5.0 |
NGK web strap hoists feature insulated super-strength 32mm wide web straps, insulated fibreglass handles and a special handle neck that will bend if the unit is overloaded to prevent damage to the puller and injury to the operator.
- Convertible series with 3 hooks
- Lightweight
- Insulated handles rotate 360 deg
- Controlled smother release of load
- Made in Japan from Japanese components
Other Nagaki NGK Web Strap Hoists Available from TEN
| Part No | WLL (T) | Min Pull (mm) | Max Pull (mm) | Handle Length (mm) | Wt (kg) |
|---|---|---|---|---|---|
| N-1000P | 1.0 | 440 | 1940 | 400 | 3.3 |
| N-1500P | 1.5 | 470 | 1970 | 460 | 4.6 |
| N-1500P-EX | 0.75 Single1.5 Double | 500 | 2000 Double3500 Single | 460 | 5.0 |
