Stick, telescopic, triangular, 40', 12.0m/1.75m, operating / measuring, Hastings
Stick, telescopic, triangular, 40', 12.0m/1.75m, operating / measuring, Hastings


Code: MV-40
Brand:
Product Details
Stick, telescopic, triangular, 40', 12.0m/1.75m, operating / measuring, Hastings


Hastings Triangular Measuring Telescopic Fibreglass Sticks

  • Open and close switches, EDO’s and service fuses
  • Replaceable sections, no disassembly tools required
  • Fluoro lime green tip section is foam filled
  • Tested to ASTM F7-11 and OSHA
  • Measure elevated heights
  • Supplied in metre/centimetre measuring graduations
  • Eye level reading feature with measurement markings in large, red, easy to read numbers
  • Markings will not chip, peel or rub off
  • Universal Disconnect Hook included

Please Note

Kit also available with Storage Bag - *Add -K to part Number

Part # Extended Length Retracted Length Weight
MV-25 7.8m 1.6m 3.7kg
MV-30 9.2m 1.7m 4.6kg
MV-35 10.6m 1.7m 5.5kg
M-40 12.0m 1.8m 6.5kg

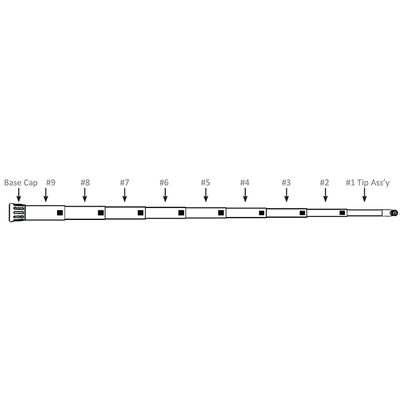

MV Series Replacement Parts


Part No./
Sections
9
Base
8 7 6 5 4 3 2 1 Base Cap
MV-25 - - - A20348 A20356 A20355 A20354 A20353 A20352 P18029
MV-30 - - A20349 A20357 A20356 A20355 A20354 A20353 A20352 P18030
MV-35 - A20350 A20358 A20357 A20356 A20355 A20354 A20353 A20352 P18031
MV-40 A20263 A20359 A20358 A20357 A20356 A20355 A20354 A20353 A20352 P18026
