Stick, telescopic, triangular, quick change head, 35', 10.6m/ 1.7m, op/measuring, Hastings

Stick, telescopic, triangular, quick change head, 35', 10.6m/ 1.7m, op/measuring, Hastings


Code: MV-35-Q
Brand: Hastings Fiberglass Products
Product Details
Stick, telescopic, triangular, quick change head, 35', 10.6m/ 1.7m, op/measuring, Hastings

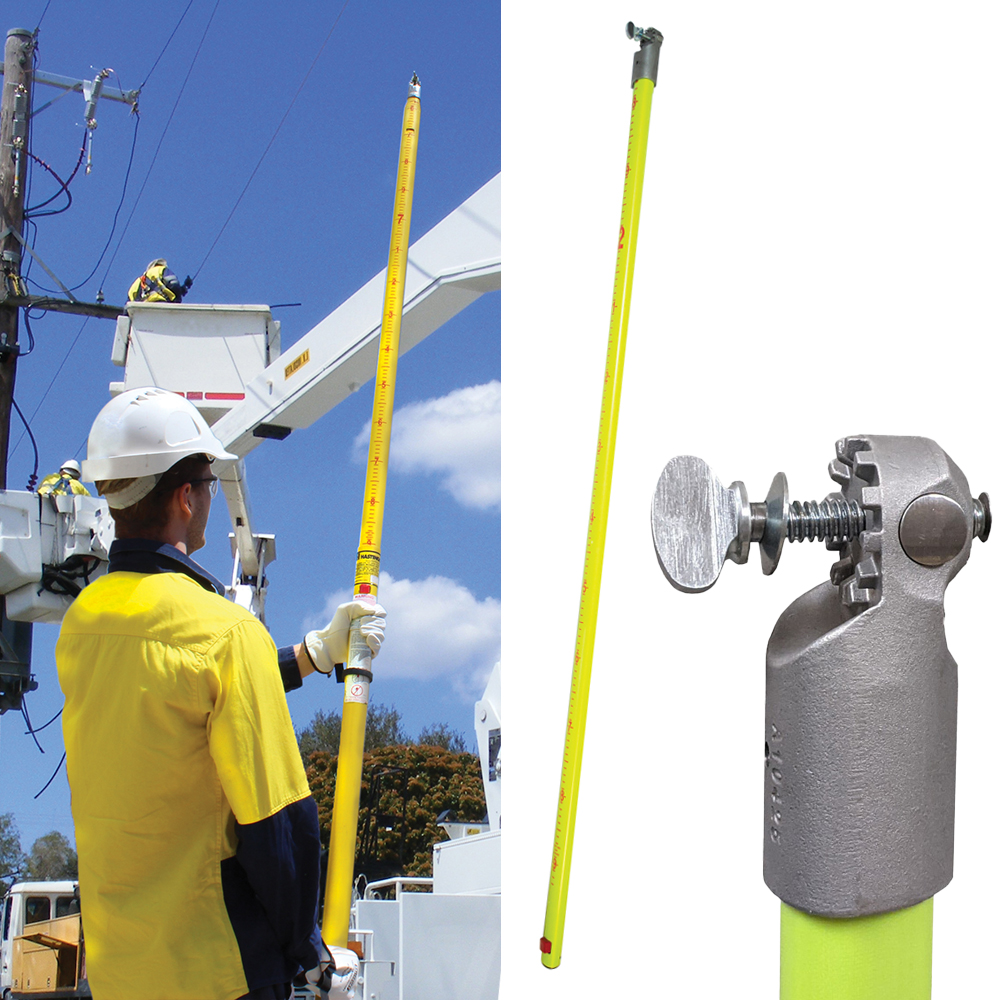

Hastings Triangular Measuring Telescopic Fibreglass Sticks

  • Open and close switches, EDO’s and service fuses
  • Replaceable sections, no disassembly tools required
  • Fluoro lime green tip section is foam filled
  • Tested to ASTM F7-11 and OSHA
  • Measure elevated heights
  • Supplied in metre/centimetre measuring graduations
  • Eye level reading feature with measurement markings in large, red, easy to read numbers
  • Markings will not chip, peel or rub off
  • Universal Disconnect Hook included

Specifications

Part No./Sections Part No./
Stick c/w Quick release head
Extended Length (m) Retracted Length (m) Base OD (mm) Wt (kg) Add "K" for Storage Bag
MV-25 MV-25-Q 7.8 1.6 48.5 3.7 TENM301
MV-30 MV-30-Q 9.2 1.7 52.5 4.5 TENM301
MV-35 MV-35-Q 10.6 1.7 56.0 5.5 TENM301
MV-40 MV-40-Q 12.0 1.8 60.4 6.5 TENM301

Kit also available with Storage Bag - *Add -K to part Number

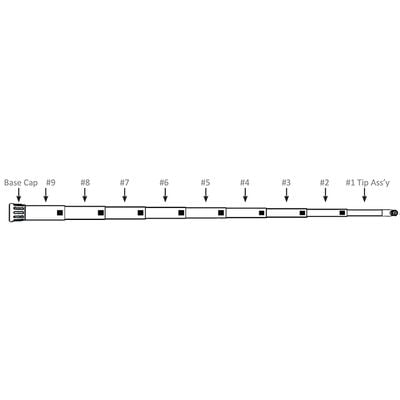

MV Series Replacement Parts


Part No./
Sections
9
Base
8 7 6 5 4 3 2 1 Base Cap Thumb Screw
MV-25 - - - A20348 A20356 A20355 A20354 A20353 A20352 P18029 P16055
MV-25-Q - - - A20348 A20356 A20355 A20354 A20353 A20466 P18029 Not Required
MV-30 - - A20349 A20357 A20356 A20355 A20354 A20353 A20352 P18030 P16055
MV-30-Q - - A20349 A20348 A20356 A20355 A20354 A20353 A20466 P18030 Not Required
MV-35 - A20350 A20358 A20357 A20356 A20355 A20354 A20353 A20352 P18031 P16055
MV-35-Q - A20350 A20358 A20357 A20356 A20355 A20354 A20353 A20466 P18031 Not Required
MV-40 A20263 A20359 A20358 A20357 A20356 A20355 A20354 A20353 A20352 P18026 P16055
MV-40-Q A20263 A20359 A20358 A20357 A20356 A20355 A20354 A20353 A20466 P18026 Not Required
