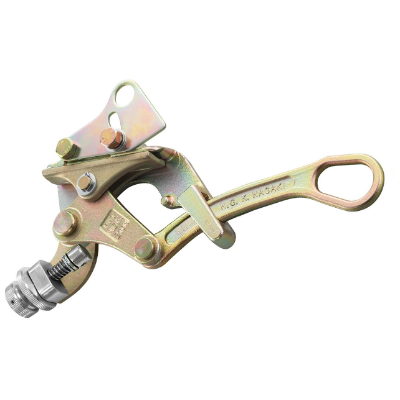

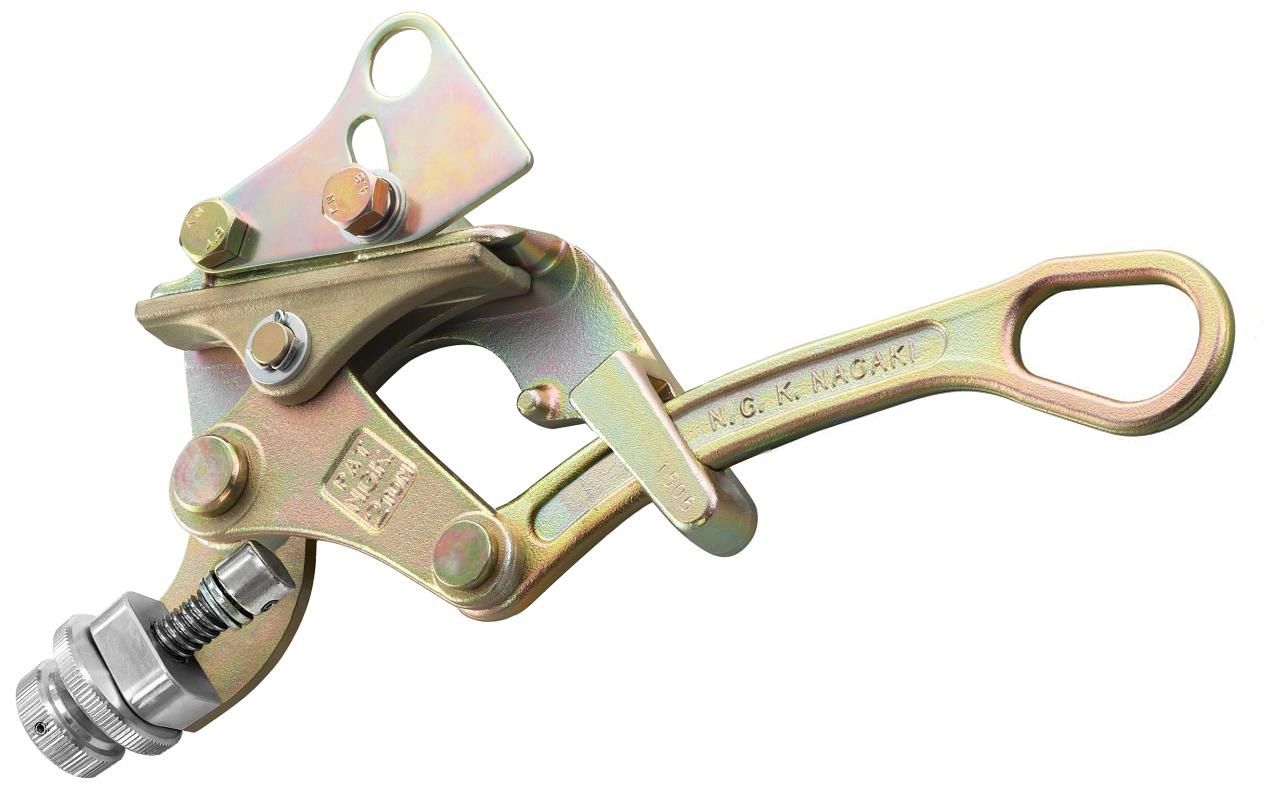

Wire Grip 2T, Cu, Covered Conductor, Catenary Wire, 5-25mm, Double Lock Nut, NGK

Wire Grip 2T, Cu, Covered Conductor, Catenary Wire, 5-25mm, Double Lock Nut, NGK


Code: MIDDLE-L-GRIP-L
Brand: NGK
Product Details
Grip, wire, 5-25mm, Cu, covered cable, wire, 20kN, 2T with double lock nut, NGK


Nagaki MIDDLE-L-GRIP-L

Part No Min-Max Dia (mm) WLL (kN) Jaw L (mm) Jaw Type Wt (kg) Safety Latch Suitable for wire/cable Eye Width (mm) Notes
MIDDLE-L-GRIP-L 5-25 20 110 Serrated 1.8 YES Bare Cu, Covered Conductor and Catenary Wire 32 Large Eye

  • Double Locking Nut for added Safety
  • Manufactured from high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated
  • Safety latch on all NGK models
  • Special shaped pulling eyes suit all brands of strap pullers

Other Nagaki Grips Available

Part NoMin-Max Dia (mm)WLL (kN)Jaw L (mm)Jaw TypeWt (kg)Safety LatchSuitable for wire/cable Eye Width (mm)Notes
MINI-GRIP1-105NASerrated0.3NOSteel Rod, Barbed and Catenary Wire16 Curved Jaw
SD-L-GRIPL/W2.6-151034Serrated0.6YESSteel Rod/Wire, Bare Cu and Catenary Wire26Large Eye
MESSEN-LGRIP-L4-121050Serrated0.7YESSteel Wire, Bare Cu, Al Clad Steel and Catenary Wire26Double Lock Nut
SS-GRIP5-1210160Slight Serrations1.6YESTelephone Cable26-
1TON-L-GRIP4-221060Serrated1.4YESBare Cu, Covered Conductor and Catenary Wire32 Large Eye
2TON-L-GRIP4-222060Serrated1.4YESBare Cu, Covered Conductor and Catenary Wire32 Large Eye
MIDDLE-L-GRIP5-2520110Serrated1.8YESBare Cu, Covered Conductor and Catenary Wire32Large Eye
CCT-GRIP5-2520110Serrated1.8YESCCT Up to 180mm2 Up to 80mm232 Large Eye
3TON-GRIP8-2230120Serrated3.1YESStay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire34-
4TON-GRIP13-2840150Serrated5.0YESStay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire50-
6TON-GRIP13-2860150Serrated5.2YESStay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire25-
10TON-GRIP18-32100180Serrated10.0YESStay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire60-
AL-L-GRIP5-221060Smooth1.1YESACSR, Bare Al & Bare Cu32 Large Eye
AL-2TON-GRIP-L5-2020100Smooth1.7YESACSR, Bare Al and Bare Cu32 Fine smooth jaw, lower risk of conductor damage
AL-MIDDLE-GRIP*5-2520110Smooth1.8YESACSR, Bare Al and Bare Cu32 Fine smooth jaw, lower risk of conductor damage
AL-MIDDLE-GRIP-L5-2520110Smooth2.9YESACSR, Bare Al and Bare Cu32 Fine smooth jaw, lower risk of conductor damage
AL-LARGE-GRIP*16-3220110Smooth2.0YESACSR, Bare Al and Bare Cu32 Fine smooth jaw, lower risk of conductor damage
AL-3TON-GRIP8-2230120Smooth3.0YESACSR, Bare Al and Bare Cu34 Fine smooth jaw, lower risk of conductor damage
AL-4TON-GRIP20-3540140Smooth3.7YESACSR, Bare Al and Bare Cu34 Fine smooth jaw, lower risk of conductor damage
HOT-M-GRIP5-2520110Smooth2.0YESACSR, Bare Al and Bare Cu32 Hot Stick Rings
HOT-L-GRIP16-3220110Smooth2.0YESACSR, Bare Al and Bare Cu32 Hot Stick Rings
AL-10TON-GRIP32-46100300Smooth14YESACSR, Bare Al and ACSR63 Smoth Jaw
TROLLEY-GRIP1L-S5-1620100Serrated1.5YESRail Contact Wire, Bare Cu, Catenary Wire and Wire Rope32Large Eye
TROLLEY-GRIP-2-L8-2020150Serrated2.8YESRail Contact Wire, Bare Cu, Catenary Wire and Wire Rope25Large Eye
TROLLEY-GRIP-4-L13-2840150Serrated5.2YESRail Contact Wire, Bare Cu, Catenary Wire and Wire Rope32Large Eye
ABC-GRIP-S2x16 and 4x35mm26.0130Serrated1.8YESABC 2 x 16mm2 tp 4 x 35mm232 Large Eye
ABC-GRIP4x35 and 4x95mm28.5190Serrated3.3YESABC - 4 x 35mm2 to 4 x 95mm235 Large Eye
ABC-GRIP-L4x95 and 4x150mm220190Serrated3.3YESABC - 4 x 95mm2 to 4 x 150mm235 Large Eye
