Grip, wire, 5-25mm, Cu, covered cable, wire, 20kN, 2T, WLL, safety latch, NGK

Ten Group // PULLING AND HAULING // Wire Grips // Wire Grip NGK // Grip, wire, 5-25mm, Cu, covered cable, wire, 20kN, 2T, WLL, safety latch, NGK

Code: MIDDLE-L-GRIP
Brand: NGK
Product Details:
Grip, wire, 5-25mm, Cu, covered cable, wire, 20kN, 2T, WLL, safety latch, NGK

Product Features and Benefits
Documentation

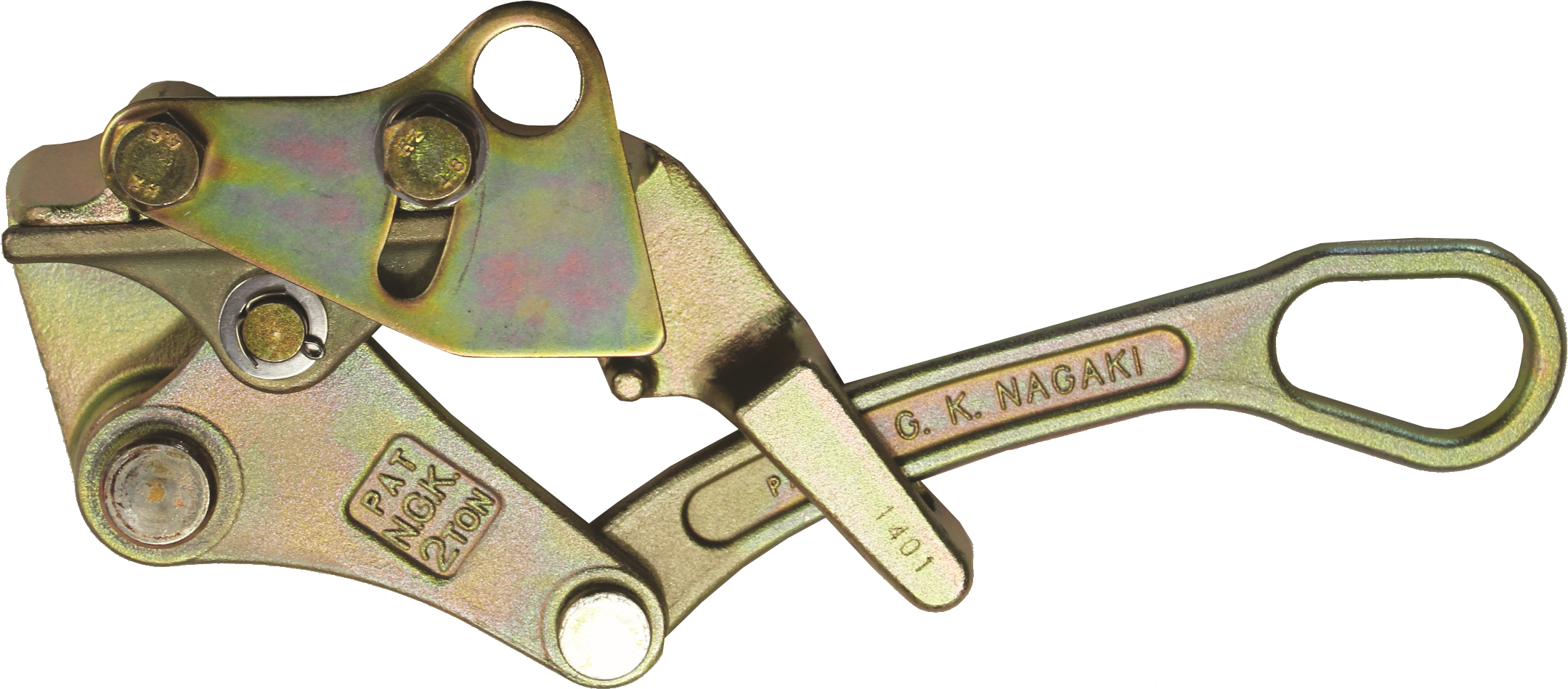

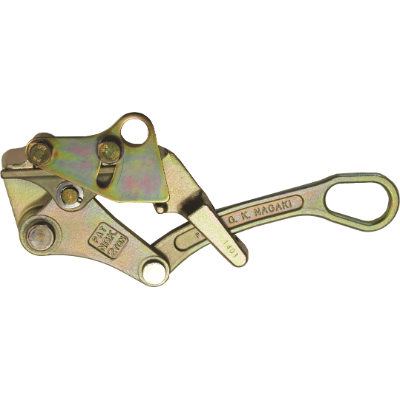

Nagaki MIDDLE-L-GRIP

Part No	Min-Max Dia (mm)	WLL (kN)	Jaw L (mm)	Jaw Type	Wt (kg)	Safety Latch	Suitable for wire/cable	Eye Width (mm)	Notes
MIDDLE-L-GRIP	5-25	20	110	Serrated	1.8	YES	Bare Cu, Covered Conductor and Catenary Wire	32	Large Eye

Manufactured from high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated
Safety latch on all NGK models
Special shaped pulling eyes suit all brands of strap pullers

Other Nagaki Grips Available

Part No	Min-Max Dia (mm)	WLL (kN)	Jaw L (mm)	Jaw Type	Wt (kg)	Safety Latch	Suitable for wire/cable	Eye Width (mm)	Notes
MINI-GRIP	1-10	5	NA	Serrated	0.3	NO	Steel Rod, Barbed and Catenary Wire	16	Curved Jaw
SD-L-GRIPL/W	2.6-15	10	34	Serrated	0.6	YES	Steel Rod/Wire, Bare Cu and Catenary Wire	26	Large Eye
MESSEN-LGRIP-L	4-12	10	50	Serrated	0.7	YES	Steel Wire, Bare Cu, Al Clad Steel and Catenary Wire	26	Double Lock Nut
SS-GRIP	5-12	10	160	Slight Serrations	1.6	YES	Telephone Cable	26	-
1TON-L-GRIP	4-22	10	60	Serrated	1.4	YES	Bare Cu, Covered Conductor and Catenary Wire	32	Large Eye
2TON-L-GRIP	4-22	20	60	Serrated	1.4	YES	Bare Cu, Covered Conductor and Catenary Wire	32	Large Eye
MIDDLE-L-GRIP	5-25	20	110	Serrated	1.8	YES	Bare Cu, Covered Conductor and Catenary Wire	32	Large Eye
CCT-GRIP	5-25	20	110	Serrated	1.8	YES	CCT Up to 180mm2 Up to 80mm2	32	Large Eye
3TON-GRIP	8-22	30	120	Serrated	3.1	YES	Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire	34	-
4TON-GRIP	13-28	40	150	Serrated	5.0	YES	Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire	50	-
6TON-GRIP	13-28	60	150	Serrated	5.2	YES	Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire	25	-
10TON-GRIP	18-32	100	180	Serrated	10.0	YES	Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire	60	-
AL-L-GRIP	5-22	10	60	Smooth	1.1	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-2TON-GRIP-L	5-20	20	100	Smooth	1.7	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-MIDDLE-GRIP*	5-25	20	110	Smooth	1.8	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-MIDDLE-GRIP-L	5-25	20	110	Smooth	2.9	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-LARGE-GRIP*	16-32	20	110	Smooth	2.0	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-3TON-GRIP	8-22	30	120	Smooth	3.0	YES	ACSR and Bare Al	34	Fine smooth jaw, lower risk of conductor damage
AL-4TON-GRIP	20-35	40	140	Smooth	3.7	YES	ACSR and Bare Al	34	Fine smooth jaw, lower risk of conductor damage
HOT-M-GRIP	5-25	20	110	Smooth	2.0	YES	ACSR, Bare Al and Bare Cu	32	Hot Stick Rings
HOT-L-GRIP	16-32	20	110	Smooth	2.0	YES	ACSR, Bare Al and Bare Cu	32	Hot Stick Rings
AL-10TON-GRIP	32-46	100	300	Smooth	14	YES	Bare Al and ACSR	63	Smooth Jaw
TROLLEY-GRIP1L-S	5-16	20	100	Serrated	1.5	YES	Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope	32	Large Eye
TROLLEY-GRIP-2-L	8-20	20	150	Serrated	2.8	YES	Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope	25	Large Eye
TROLLEY-GRIP-4-L	13-28	40	150	Serrated	5.2	YES	Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope	32	Large Eye
ABC-GRIP-S	2x16 and 4x35mm2	6.0	130	Serrated	1.8	YES	ABC 2 x 16mm2 tp 4 x 35mm2	32	Large Eye
ABC-GRIP	4x35 and 4x95mm2	8.5	190	Serrated	3.3	YES	ABC - 4 x 35mm2 to 4 x 95mm2	35	Large Eye
ABC-GRIP-L	4x95 and 4x150mm2	20	190	Serrated	3.3	YES	ABC - 4 x 95mm2 to 4 x 150mm2	35	Large Eye
