Mat, 0.6mtr x 0.6mtr, 12.7mm, HV, Class 4, 36kV, Black, material meets ASTM D178

Ten Group // SAFETY & PPE // Insulated Blankets & Matting // HV Blankets & Mats // Mat, 0.6mtr x 0.6mtr, 12.7mm, HV, Class 4, 36kV, Black, material meets ASTM D178

Code: MAT4-60X60-D178
Brand: TEN
Product Details:

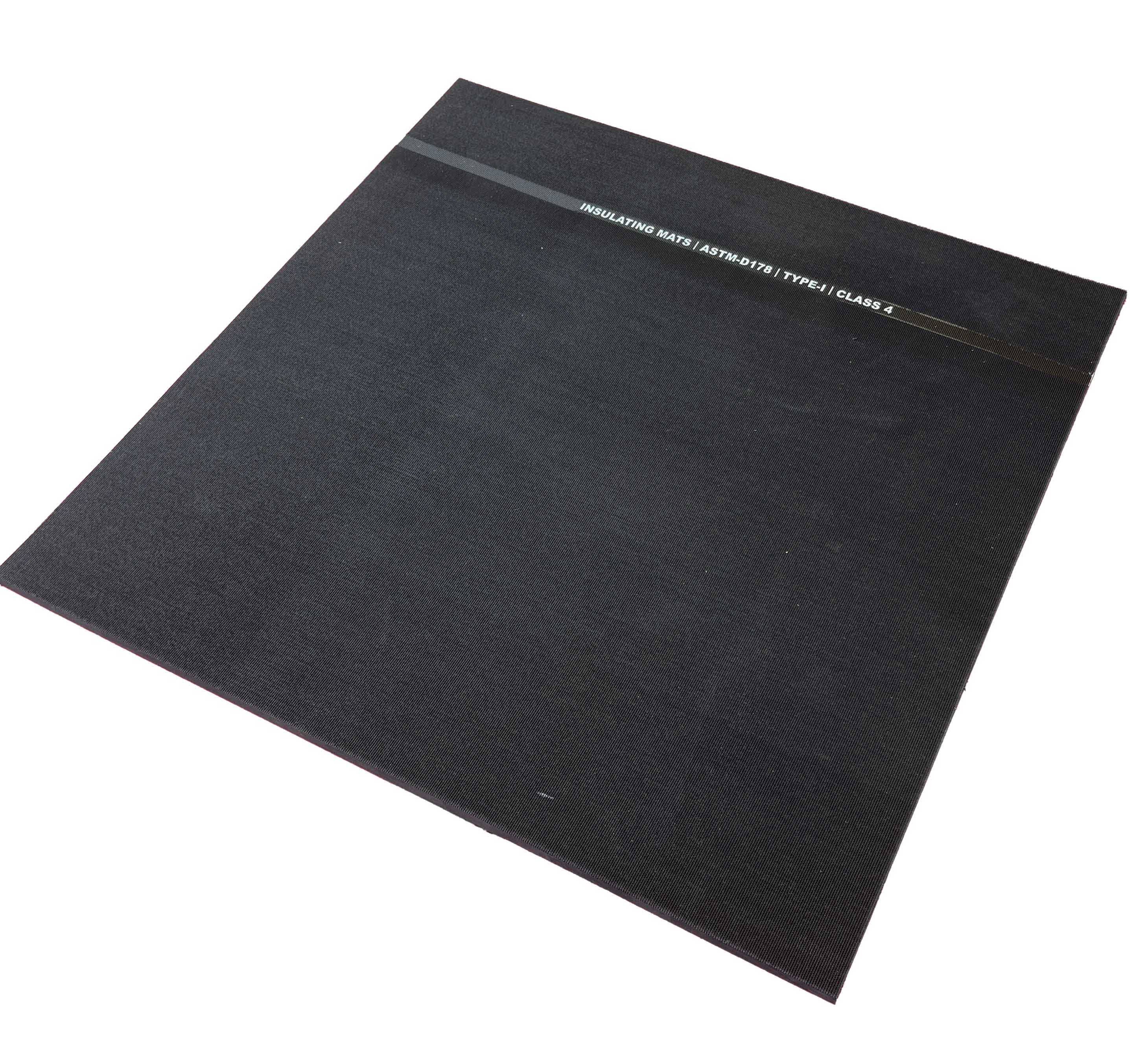

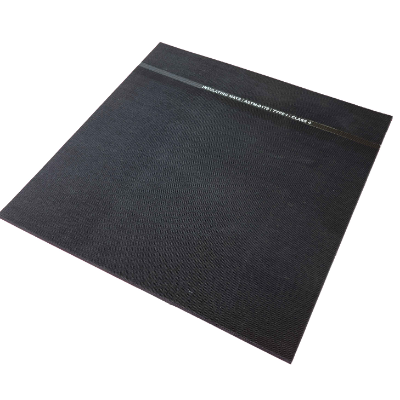

Mat, 0.6mtr x 0.6mtr, 12.7mm, HV, Class 4, 36kV, Black, material meets ASTM D178

Class 4, 12.7mm x 0.6 x 0.6m - Type I - Ground Mat

Part No. MAT4-60X60-D178

Electrical rubber insulating matting utilises material as per the ASTM-D178 standard

The non-conductive rubber mats help protect workers from electrical shocks

Anti-skid textured finish on both sides

Leakage, moisture and water proof that guarantees a long functional life

Material Composition: Combination of natural rubber and synthetic polymers

Anti-skid Design: Anti-skid textured surface

Tensile strength: 4.83Mpa (min)

Elongation at Break: 250% (min)

Aging Properties: at 70±1°C for 168 hours

Tensile strength: 50% of original value

Moisture Absorption: 1.5% (max)
