Mat, Rubber, HV, Class 4, 36kV Black, 1m x 1m x 5.2mm, meets AS/NZS IEC61111

Mat, Rubber, HV, Class 4, 36kV Black, 1m x 1m x 5.2mm, meets AS/NZS IEC61111


Code: MAT4-1MX1M-ASNZ
Brand: TEN
Product Details
Mat, Rubber, HV, Class 4, 36kV Black, 1m x 1m x 5.2mm, meets AS/NZS IEC61111

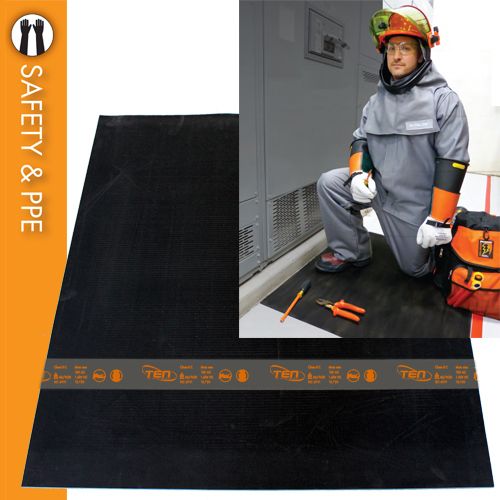

Rubber Ground Mats

Rubber Ground Mats are suitable for indoor and outdoor use and are placed in front of switchboards, switch gear and high voltage equipment in order to create a safe working environment for the operator.

The mat insulates the worker from the ground to avoid electrical shock due to direct contact with potentially live electrical parts or step voltage. The class of mat is determined by the maximum nominal voltage of the network.

Due to it’s resistivity, Rubber Electrical Insulation Mats provide a high level of Electrical protection, and are perfect for many insulating applications throughout the Electrical industry.

Safety is paramount when Utility Workers and Electrical Contractors work in trenches, on switchboards and during the stringing of overhead conductors. The Rubber mat is an integral part of their PPE equipment.

The Mats are marked with the colour according to the colour coding of the Standard. Mats conform to the following specifications:

  • Puncture resistance test
  • •Flame retardance test
  • •Acid resistance test
  • •Oil resistance test
  • Dielectric test
  • Ageing test

Features

  • Electrical mat is hard wearing, non-slip and easily cleaned or washed using a mild detergent
  • Anti-fatigue nature, comforting feet while standing for prolonged periods
  • The matting is manufactured in 10m rolls to avoid joins
  • Mats are supplied measuring 1m x 1m, however cut lengths and special sizes are also available
  • Conforms to AS/NZ IEC 61111 requirements
  • Every 300mm is marked with class working voltage and AS/NZ standard
  • Electrically tested each meter

Part No Working Voltage Standard ASTM Class Dimensions Thickness Weight
MAT4-1MX1M-ASNZ 36kV AS/NZS IEC61111:2020 4 1m x 1m 5.2mm 7.9kg

Other Rubber Ground Mats Available

Part No Working Voltage Standard ASTM Class Dimensions Thickness Weight
MAT0-1MX1M-ASNZ 1kV AS/NZS IEC61111:2020 0 1m x 1m 2.2mm 3.3kg
MAT0-1MX10M-ASNZ 1kV AS/NZS IEC61111:2020 0 1m x 10m 2.2mm 33kg
MAT2-1MX1M-ASNZ 17kV AS/NZS IEC61111:2020 2 1m x 1m 2.6mm 3.9kg
MAT2-1MX10M-ASNZ 17kV AS/NZS IEC61111:2020 2 1m x 10m 2.6mm 39kg
MAT4-1MX10M-ASNZ 36kV AS/NZS IEC61111:2020 4 1m x 10m 5.2mm 79kg
