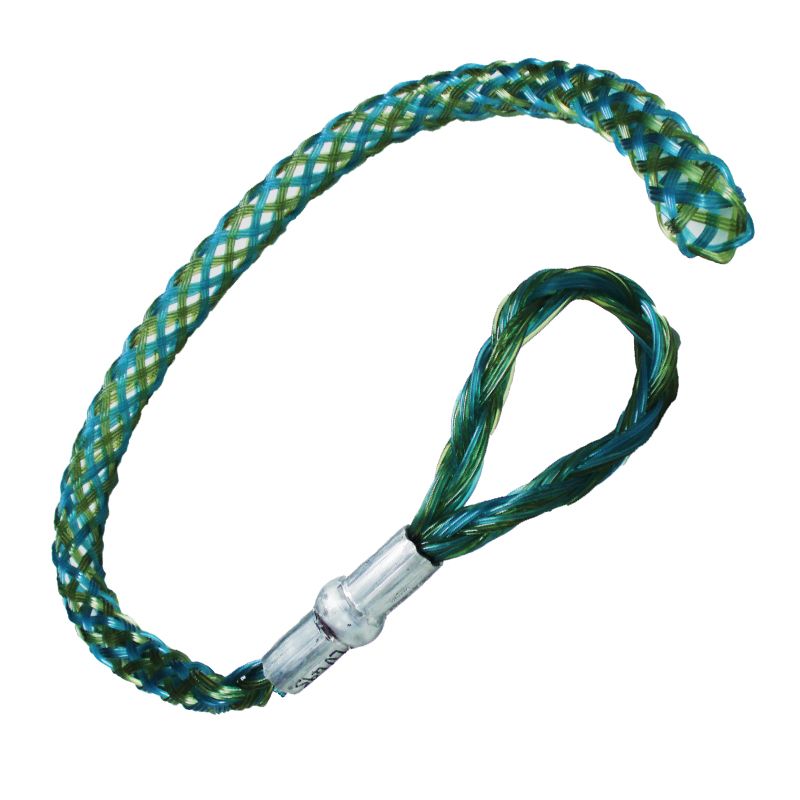

Sock, cable, single soft eye, 2x50mm2, 19-28mmOD 15kN UTS, 600mm L, Nylon, NCG

Sock, cable, single soft eye, 2x50mm2, 19-28mmOD 15kN UTS, 600mm L, Nylon, NCG


Code: LV250
Brand: NCG
Product Details
Sock, cable, single soft eye, 2x50mm2, 19-28mmOD 15kN UTS, 600mm L, Nylon, NCG


Non Conductive Nylon Socks

Features

  • Double or Triple Ply
  • Soft Eye
  • LV models for LV ABC - Single Eye with Alloy Ferrule
  • HV models for HV ABC - Double Eye with Alloy Ferrule
Part No Suits Grip Length (mm) Ultimate Tensile Strength (kN) Working Load Limit (kN)
LV225 2 x 25mm2 LV 600 15 5
LV235 2 x 35mm2 LV 600 15 5
LV250 2 x 50mm2 LV 600 15 5
LV295 2 x 95mm2 LV 600 15 5
LV335 3 x 35mm2 LV 600 15 5
LV395 3 x 95mm2 LV 600 25 8.3
LV425 4 x 25mm2 LV 600 15 5
LV435 4 x 35mm2 LV 600 15 5
LV450 4 x 50mm2 LV 600 15 5
LV470 4 x 70mm2 LV 600 17 5.6
LV495 4 x 95mm2 LV 800 25 8.3
LV4150 4 x 150mm2 LV 800 25 8.3
HV335 3 x 35mm2 HV 800 25 8.3
HV350 3 x 50mm2 HV 800 25 8.3
HV370 3 x 70mm2 HV 800 25 8.3
HV395 3 x 95mm2 HV 900 31 10.3
HV3120 3 x 120mm2 HV 900 31 10.3
HV3150 3 x 150mm2 HV 900 31 10.3
HV3185 3 x 185mm2 HV 900 31 10.3
