60T Crimping Die, Hex, Cu, 26.0mm AF, 300mm2, 25.0mm W

60T Crimping Die, Hex, Cu, 26.0mm AF, 300mm2, 25.0mm W


Code: K60-26.0-CU
Brand: TEN
Product Details

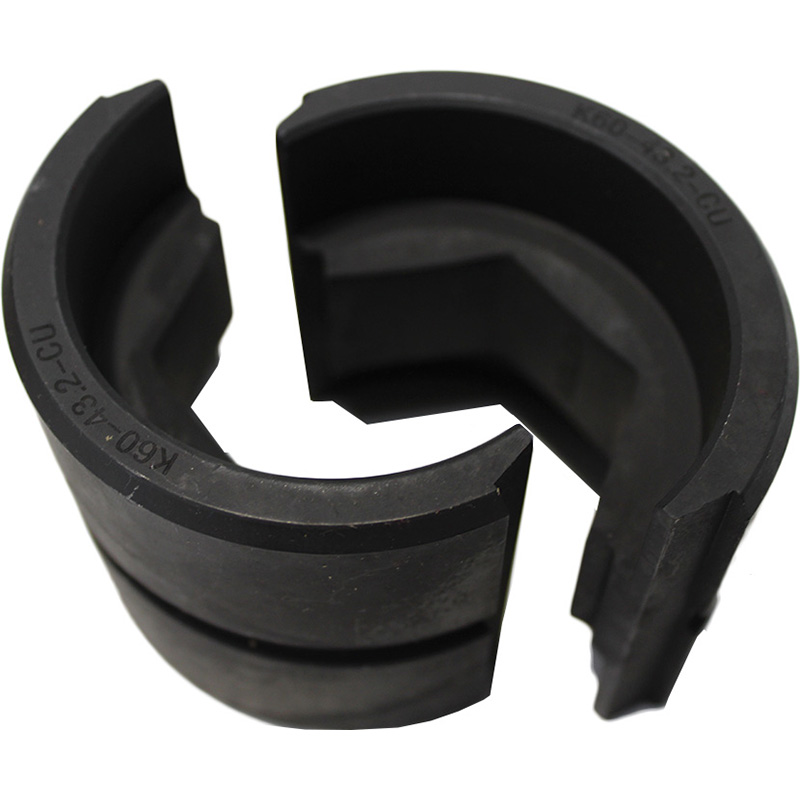

Die, 60T, hex, Cu, 26.0mm AF, 300mm2, 25.0mm W, TEN


60 Tonne Crimping Dies

Use to crimp lugs and links with a 6o tonne cable crimper

Part NoTypeConductorA/FWidth
Copper
K60-23.1-CU Cu240mm223.1mm25.0mm
K60-26.0-CU Cu300mm226.0mm25.0mm
K60-28.1-CU Cu400mm228.1mm25.0mm
K60-31.0-CU Cu500mm231.0mm25.0mm
K60-37.0-CU Cu630mm237.0mm25.0m
K60-43.2-CU Cu800mm243.2mm25.0mm
K60-48.0-CU Cu1000mm248.0mm25.0mm
Aluminium
K60-28.3-AL Al240-300mm228.3mm50.0mm
K60-28.5-AL Al 28.5mm50.0mm
K60-34.5-AL Al 34.5mm50.0mm
K60-39.0-AL Al400-500mm239.0mm50.0mm
K60-40.0-AL Al 40.0mm50.0mm
K60-43.2-AL Al630mm243.2mm50.0mm
K60-44.5-AL Al 44.5mm50.0mm
K60-47.5-AL Al 47.5mm45.0mm
K60-48.0-AL Al 48.0mm45.0mm
K60-52.5-AL Al800-1000mm252.5mm40.0mm
Steel
K60-16.0-ST Steel Inner 16.0mm19.0mm
K60-17.0-ST Steel Inner 17.0mm19.0mm
K60-18.0-ST Steel Inner 18.0mm19.0mm
K60-19.0-ST Steel Inner 19.0mm19.0mm
