Die, 3.5T, hex, Cu, 10.4mm AF, 50mm2, 5mm W, HR450, suit EK354
Die, 3.5T, hex, Cu, 10.4mm AF, 50mm2, 5mm W, HR450, suit EK354


Code: K3.5-C50
Brand:
Product Details

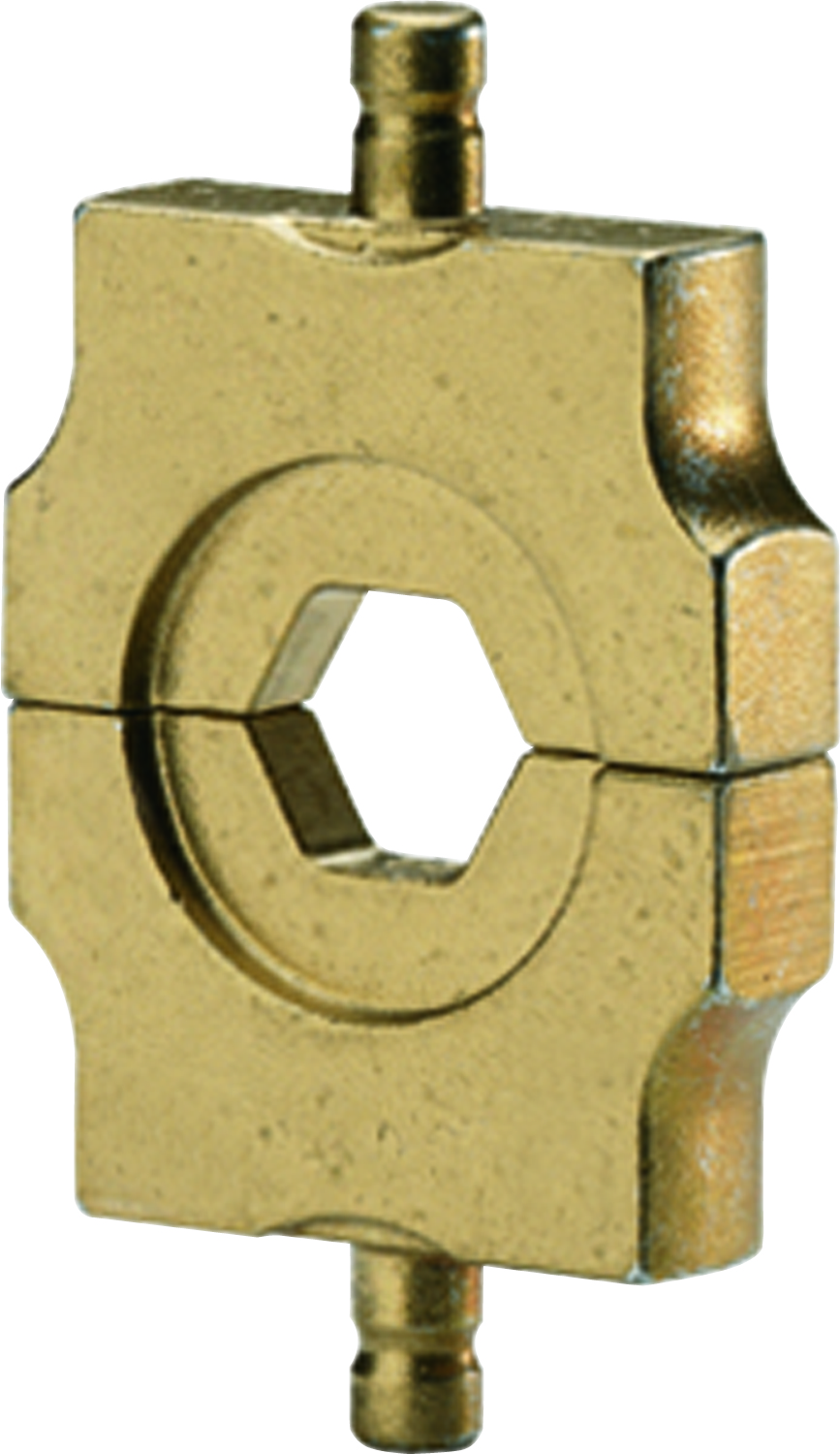

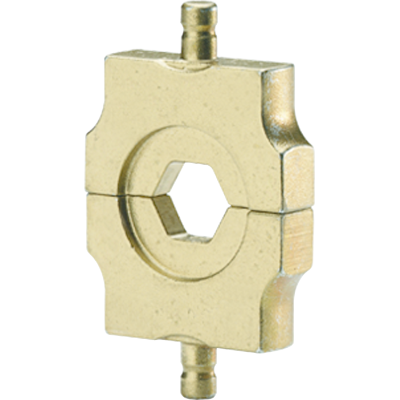

Die, 3.5T, hex, Cu, 10.4mm AF, 50mm2, 5mm W, HR450, suit EK354


3.5 Tonne Series 4 copper crimp die to suit Klauke Mini Crimper EK354CFM

Part No.Size (mm²)Across Flats (mm)Crimp Width (mm)
K3.5-C664.45.0
K3.5-C10105.75.0
K3.5-C16166.35.0
K3.5-C25257.75.0
K3.5-C35359.25.0
K3.5-C505010.45.0
K3.5-C707011.55.0
K3.5-C14Insulated Sleeve14.05.0
K3.5-C959514.25.0
K3.5-C12012016.55.0
K3.5-C15015018.35.0
