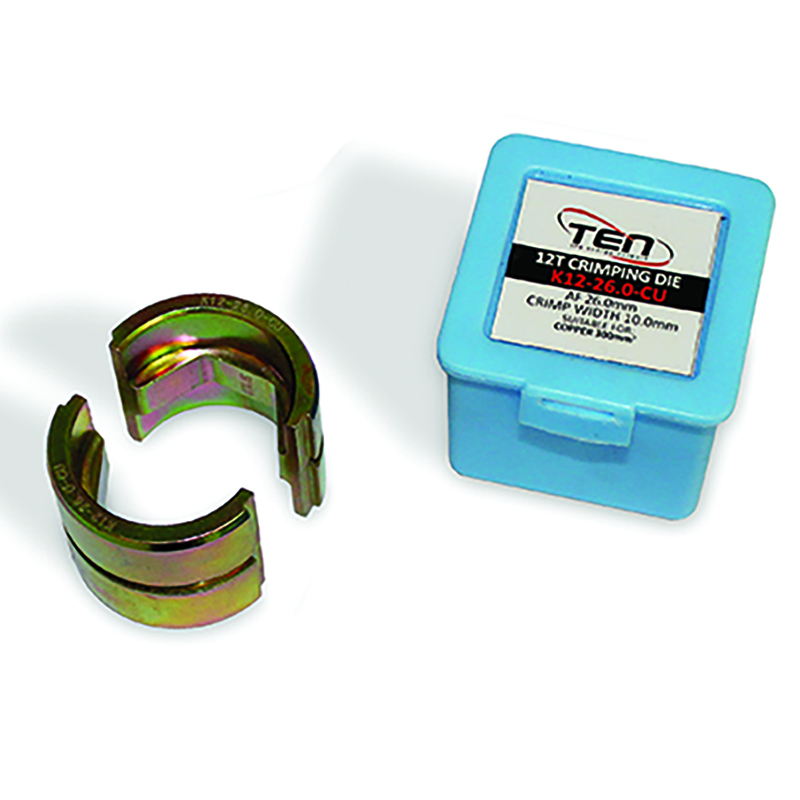

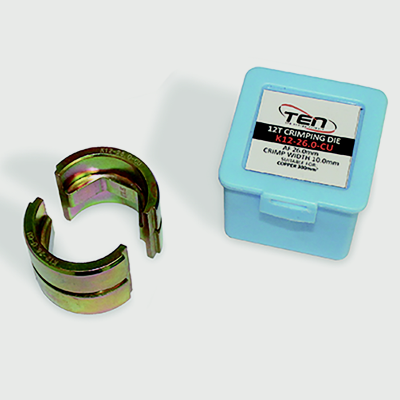

12 Tonne Copper Compression Hex Die

Part No K12CUSET-16-400NB

• Commonly referred to as 'C' or 'U' type dies
• Dies colour coded for easy identification
• Come in plastic clip seal protective storage case with label featuring Die Part Number, Across flat dimensions and suitable conductors

Contact TEN or download the datasheet on the documentation tab containing information for Special or custom dies.

12 Tonne Copper Compression Hex Dies
Part No	Type	Conductor	A/F	Width
K12-04.4-CU	Cu	6mm2	4.4mm	6.5mm
K12-05.7-CU	Cu	10mm2	5.7mm	6.5mm
K12-06.3-CU*	Cu	16mm2	6.3mm	17.5mm
K12-07.7-CU*	Cu	25mm2	7.7mm	17.5mm
K12-09.2-CU*	Cu	35mm2	9.2mm	17.5mm
K12-10.4-CU*	Cu	50mm2	10.4mm	17.5mm
K12-11.5-CU*	Cu	70mm2	11.5mm	17.5mm
K12-14.2-CU*	Cu	95mm2	14.2mm	17.5mm
K12-16.5-CU*	Cu	120mm2	16.5mm	14mm
K12-18.3-CU*	Cu	150mm2	18.3mm	14mm
K12-20.0-CU*	Cu	185mm2	20mm	14mm
K12-23.1-CU*	Cu	240mm2	23.1mm	10mm
K12-26.0-CU*	Cu	300mm2	26mm	10mm
K12-28.1-CU*	Cu	400mm2	28.1mm	10mm

Die Sets below are made up using dies (above) marked with asterix *

12 Tonne Copper Compression Hex Die Sets
Part No	Description
K12CUSET-16-400	16mm2 to 400mm2 (12 Dies) Including 20 compartment metal box
K12CUSET16-400NB	16mm2 to 400mm2 (12 Dies) No box included

12 Tonne Aluminium Compression Hex Dies
Part No	Type	Conductor	A/F	Width
K12-09.0-AL	Al	6 - 35mm2	9mm	22mm
K12-13.2-AL	Al	50-70mm2	13.2mm	22mm
K12-17.3-AL	Al	95 - 120mm2	17.3mm	22mm
K12-22.0-AL	Al	150 - 185mm2	22mm	18mm
K12-28.4-AL	Al	240- 300mm2	28.4mm	18mm

12 Tonne Copper Compression Hex Die - Overhead Part NoTypeConductorA/FWidth K12-8.3-CUCu7/1.63 and 7/1.708.3mm9.0mm K12-9.2-CUOHCu7/2.00 - 7/2.039.2mm9.0mm K12-11.5-CUOHCu7/2.3211.5mm9mm K12-13.0-CUCu37/.064 - 19/2.1113mm17.5mm K12-13.2-CUCu19/1.7013.2mm17.5mm K12-14.8-CUCu19/2.00 - 19/2.1114.8mm9.0mm K12-19.3-CUCuOH 19/2.7519.3mm14mm

12 Tonne Copper Compression Hex Dies - Special
Part No	Type	Conductor	A/F	Width
K12-08.2-CU	Cu	SPECIAL	8.2mm	9mm
K12-19.0-CU	Cu	SPECIAL	19.0mm	22.0mm
K12-22.0-CU	Cu	SPECIAL	22.0mm	10.0mm
K12-CSFLAT9	Cu	FLAT Face Half Only	*Determined by Lug Size	9.9mm

Contact lug manufacturer for hex half*

12 Tonne Copper Screen Compression Hex Dies
Part No	Type	Conductor	A/F	Width
K12-07.5-CS	Cu Screen	35mm2 Triplex	7.5mm	16mm
K12-12.7-CS	Cu Screen	185mm2 Triplex	12.7mm	14mm
K12-14.0-CS	Cu Screen	Special	14mm	18mm

12 Tonne Copper “C” Connector Compression Hex Dies
Part No	Type	Burndy Part No	Cabac Part No
K12-U1011	Cu “C” Connector	U1011	HT130-C1011
K12-U997	Cu “C” Connector	U997	HT130-C997
K12-UC	Cu “C” Connector	UC	HT130-CC
K12-UO	Cu “C” Connector	UO	HT130-CO

12 Tonne Aluminium Compression Hex Dies - Overhead
Part No	Type	Conductor	A/F	Width
K12-14.0-AL	Al	OH 7/2.25	14mm	22mm
K12-14.5-AL	Al	OH 7/2.50	14.5mm	22mm
K12-14.8-AL	Al	OH 19/2.00-19/2.11	14.8mm	9mm
K12-18.0-AL	Al	OH 7/3.00 - 7/3.75	18mm	22mm
K12-19.0-AL	Al	OH 7/4.50	19mm	22mm
K12-21.0-AL	Al	150-185mm2 Utilux	21mm	18mm
K12-22.0-AL	Al	19/3.25	22mm	18mm
K12-25.4-AL	Al	OH 19/3.75*	25.4mm	18mm
K12-26.2-AL	Al	OH 19/3.75*	26.2mm	18mm
K12-30.3-AL	Al	OH 19/4.75	30.3mm	18mm

12 Tonne Aluminium Compression Hex Dies - Special
Part No	Type	Conductor	A/F	Width
K12-16.6-AL	Al	Special	16.6mm	22mm
K12-21.5-AL	Al	Special	21.5mm	18mm
K12-23.1-AL	Al	Special	23.1mm	18mm
K12-24.2-AL	Al	Special	24.2mm	18mm
K12-24.9-AL	Al	Special	24.9mm	18mm
K12-25.0-AL	Al	Special	25.0mm	18mm
K12-30.0-AL	Al	Special	30.0mm	18mm

12 Tonne ACSR Inner Steel Compression Hex Dies
Part No	Type	Conductor	A/F	Width
K12-06.8-ST	Steel	Inner Steel ACSR	6.8mm	10mm
K12-07.5-ST	Steel	Inner Steel ACSR	7.5mm	10mm
K12-09.5-ST	Steel	Inner Steel ACSR	9.5mm	10mm

12 Tonne ABC Compression Hex Die
Part No	Type	Conductor	A/F	Width
K12-14.0-ABC	ABC	25mm2	14mm	9mm
K12-17.3-ABC	ABC	70mm2	17.3mm	9mm
K12-21.5-ABC	ABC	95 - 120mm2	21.5mm	9mm

12 Tonne Aluminium Nest and Indent Underground Compression Hex Dies
Conductor Size	3 Core		4 Core
	Nest Part No	Indent Part No	Nest Part No	Indent Part No
120mm2	K12-ANEST12	K12-A-INDENT-16	K12-ANEST14	K12-A-INDENT-16
150mm2	K12-ANEST12	K12-A-INDENT-18	K12-ANEST14	K12-A-INDENT-18
185mm2	K12-ANEST12	K12-A-INDENT-18	K12-ANEST15	K12-A-INDENT-18
240mm2	K12-ANEST12	K12-A-INDENT-19	K12-ANEST15	K12-A-INDENT-19
300mm2	K12-ANEST12	K12-A-INDENT-19	K12-ANEST15	K12-A-INDENT-19
