12T Crimping Die, Copper, Hex, 4.4mm AF, 6mm2, 6.5mm Wide
12T Crimping Die, Copper, Hex, 4.4mm AF, 6mm2, 6.5mm Wide


Code: K12-04.4-CU
Brand: TEN
Product Details
Die, 12T, hex, Cu, 4.4mm AF 6mm2, 6.5mm W, TEN

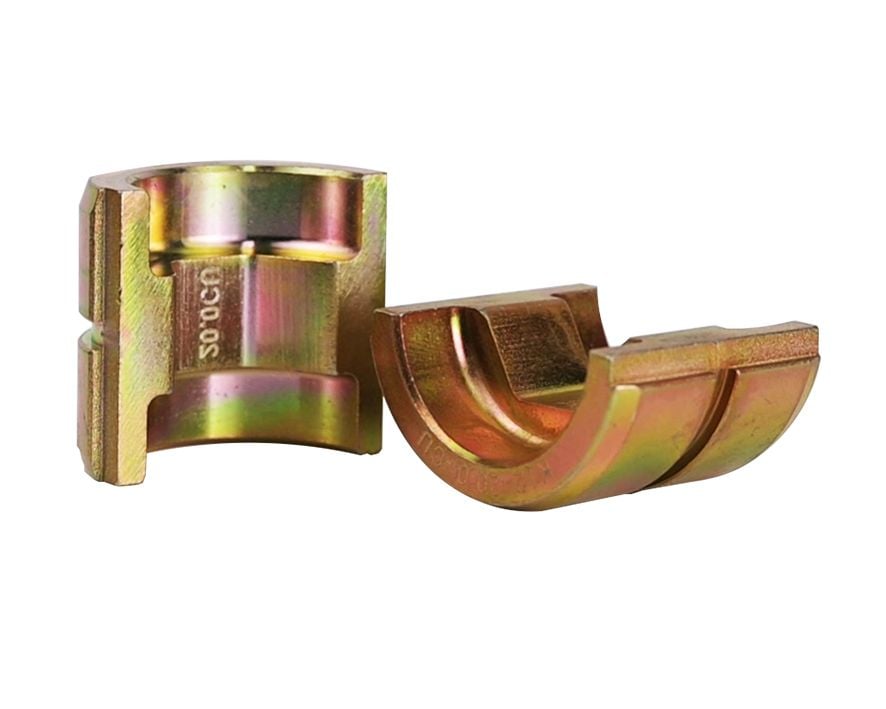

12 Tonne Copper Compression Hex Die

Part No K12-04.4-CU

  • Commonly referred to as 'C' or 'U' type dies
  • Dies colour coded for easy identification
  • Come in plastic clip seal protective storage case with label featuring Die Part Number, Across flat dimensions and suitable conductors

Contact TEN or download the datasheet on the documentation tab containing information for Special or custom dies.

12 Tonne Copper Compression Hex Dies
Part NoTypeConductorAcross FlatsCrimp Width
K12-04.4-CU Cu6mm24.4mm6.5mm
K12-05.7-CU Cu10mm25.7mm6.5mm
K12-06.3-CU* Cu16mm26.3mm17.5mm
K12-07.7-CU* Cu25mm27.7mm17.5mm
K12-09.2-CU* Cu35mm29.2mm17.5mm
K12-10.4-CU* Cu50mm210.4mm17.5mm
K12-11.5-CU* Cu70mm211.5mm17.5mm
K12-14.2-CU* Cu95mm214.2mm17.5mm
K12-16.5-CU* Cu120mm216.5mm14mm
K12-18.3-CU* Cu150mm218.3mm14mm
K12-20.0-CU* Cu185mm220mm14mm
K12-23.1-CU* Cu240mm223.1mm10mm
K12-26.0-CU* Cu300mm226mm10mm
K12-28.1-CU* Cu400mm228.1mm10mm

Die Sets below are made up using dies (above) marked with asterix *

12 Tonne Copper Compression Hex Die Sets
Part NoDescription
K12CUSET-16-40016mm2 to 400mm2 (12 Dies) Including 20 compartment metal box
K12CUSET16-400NB16mm2 to 400mm2 (12 Dies) No box included

12 Tonne Copper Compression Hex Die - Overhead
Part NoTypeConductorAcross FlatsCrimp Width
K12-8.3-CUCu7/1.63 and 7/1.708.3mm9.0mm
K12-9.2-CUOHCu7/2.00 - 7/2.039.2mm9.0mm
K12-11.5-CUOHCu7/2.3211.5mm9mm
K12-13.0-CUCu37/.064 - 19/2.1113mm17.5mm
K12-13.2-CUCu19/1.7013.2mm17.5mm
K12-14.8-CUCu19/2.00 - 19/2.1114.8mm9.0mm
K12-19.3-CUCuOH 19/2.7519.3mm14mm

12 Tonne Copper Compression Hex Dies - Special
Part NoTypeConductorAcross FlatsCrimp Width
K12-08.2-CUCuSPECIAL8.2mm9mm
K12-19.0-CUCuSPECIAL19.0mm22.0mm
K12-22.0-CUCuSPECIAL22.0mm10.0mm
K12-CSFLAT9CuFLAT Face Half Only*Determined by Lug Size9.9mm

Contact lug manufacturer for hex half*

12 Tonne Copper Screen Compression Hex Dies
Part NoTypeConductorAcross FlatsCrimp Width
K12-07.5-CS Cu Screen35mm2 Triplex7.5mm16mm
K12-12.7-CS Cu Screen185mm2 Triplex12.7mm14mm
K12-14.0-CS Cu ScreenSpecial14mm18mm

12 Tonne Copper “C” Connector Compression Hex Dies
Part NoTypeBurndy Part NoCabac Part No
K12-U1011 Cu “C” ConnectorU1011HT130-C1011
K12-U997 Cu “C” ConnectorU997HT130-C997
K12-UC Cu “C” ConnectorUCHT130-CC
K12-UO Cu “C” ConnectorUOHT130-CO

12 Tonne Aluminium Compression Hex Die
Part NoTypeConductorAcross FlatsCrimp Width
K12-09.0-AL Al6 - 35mm29mm22mm
K12-13.2-AL Al50-70mm213.2mm22mm
K12-17.3-AL Al95 - 120mm217.3mm22mm
K12-22.0-AL Al150 - 185mm222mm18mm
K12-28.4-AL Al240- 300mm228.4mm18mm

12 Tonne Aluminium Compression Hex Dies - Overhead
Part NoTypeConductorAcross FlatsCrimp Width
K12-14.0-AL AlOH 7/2.2514mm22mm
K12-14.5-AL AlOH 7/2.5014.5mm22mm
K12-14.8-AL AlOH 19/2.00-19/2.1114.8mm22mm
K12-18.0-AL AlOH 7/3.00 - 7/3.7518mm22mm
K12-19.0-AL AlOH 7/4.5019mm22mm
K12-21.0-AL Al150-185mm2 Utilux21mm18mm
K12-22.0-AL Al19/3.2522mm18mm
K12-25.4-AL AlOH 19/3.75*25.4mm18mm
K12-26.2-AL AlOH 19/3.75*26.2mm18mm
K12-30.3-AL AlOH 19/4.7530.3mm18mm

12 Tonne Aluminium Compression Hex Dies - Special
Part NoTypeConductorAcross FlatsCrimp Width
K12-16.6-AL AlSpecial16.6mm22mm
K12-21.5-AL AlSpecial21.5mm18mm
K12-23.1-AL AlSpecial23.1mm18mm
K12-24.2-AL AlSpecial24.2mm18mm
K12-24.9-AL AlSpecial24.9mm18mm
K12-25.0-AL AlSpecial25.0mm18mm
K12-30.0-AL AlSpecial30.0mm18mm

12 Tonne ACSR Inner Steel Compression Hex Dies
Part NoTypeConductorAcross FlatsCrimp Width
K12-06.8-ST SteelInner Steel ACSR6.8mm10mm
K12-07.5-ST SteelInner Steel ACSR7.5mm10mm
K12-09.5-ST SteelInner Steel ACSR9.5mm10mm

12 Tonne ABC Compression Hex Die
Part NoTypeConductorAcross FlatsCrimp Width
K12-14.0-ABC ABC25mm214mm9mm
K12-17.3-ABC ABC70mm217.3mm9mm
K12-21.5-ABC ABC95 - 120mm221.5mm9mm

12 Tonne Aluminium Nest and Indent Underground Compression Hex Dies
Conductor Size3 Core4 Core
Nest Part NoIndent Part NoNest Part NoIndent Part No
120mm2K12-ANEST12K12-A-INDENT-16K12-ANEST14K12-A-INDENT-16
150mm2K12-ANEST12K12-A-INDENT-18K12-ANEST14K12-A-INDENT-18
185mm2K12-ANEST12K12-A-INDENT-18K12-ANEST15K12-A-INDENT-18
240mm2K12-ANEST12K12-A-INDENT-19K12-ANEST15K12-A-INDENT-19
300mm2K12-ANEST12K12-A-INDENT-19K12-ANEST15K12-A-INDENT-19
