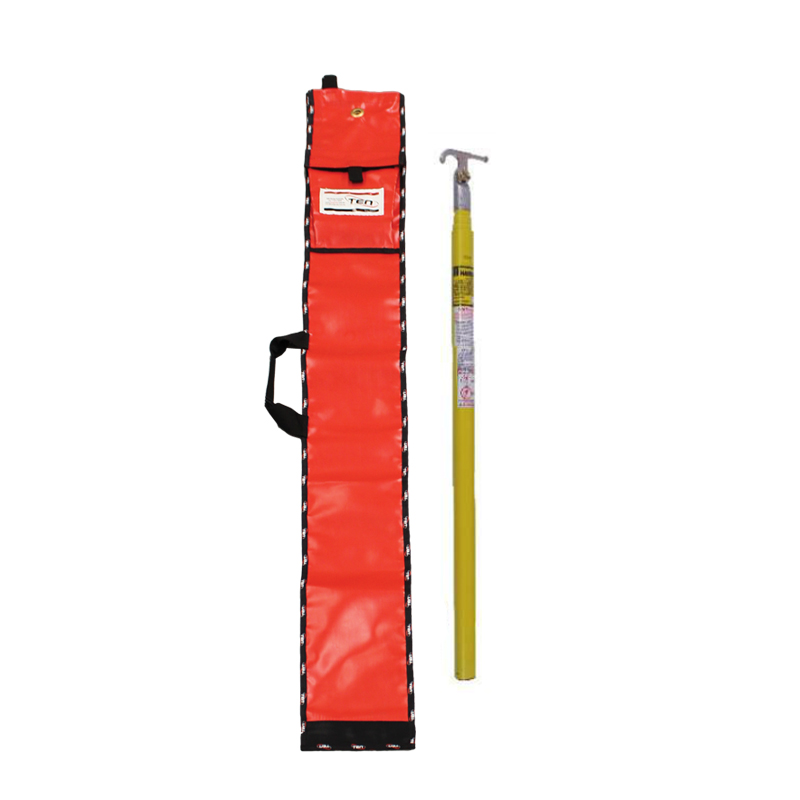

12' Telescopic Stick
12' Telescopic Stick


Code: HV-312-K
Brand: Hastings Fiberglass Products
Product Details
Stick, telescopic, triangular, 12', 3.65m/0.94m, operating, bag, Hastings


Kit Components

This item contains the following components:

  • Open and close switches, EDO’s and service fuses
  • Replaceable sections, no disassembly tools required
  • Fluoro lime green tip section is foam filled
  • Tested to ASTM F711 & OSHA
  • Kit with Universal Disconnect Hook # P10431 and Storage Bag
  • Order base cap separately if replacing base section
Part #Extended LengthRetracted LengthBase DiameterBag ReplacementWeight
HV-208-K 2.4m 0.7m 44.5mm TENM308 1.4kg
HV-212-K 3.8m 1.5m 36.8mm TENM309 1.7kg
HV-216-K 5.0m 1.5m 40.9mm TENM301 2.3kg
HV-220-K 6.4m 1.6m 44.5mm TENM301 2.9kg
HV-312-K 3.6m 0.9m 44.0mm TENM309 2.7kg

No tools are required for replacing, sections sold complete with lock assembly Replacement Parts

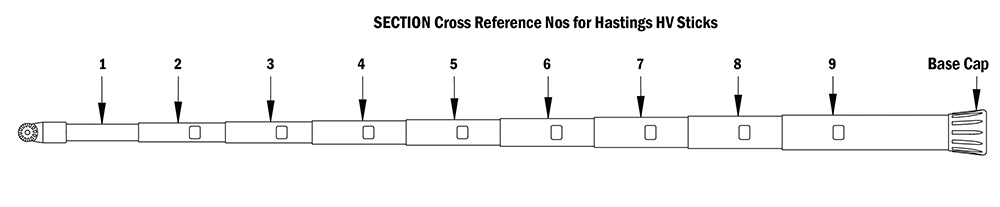

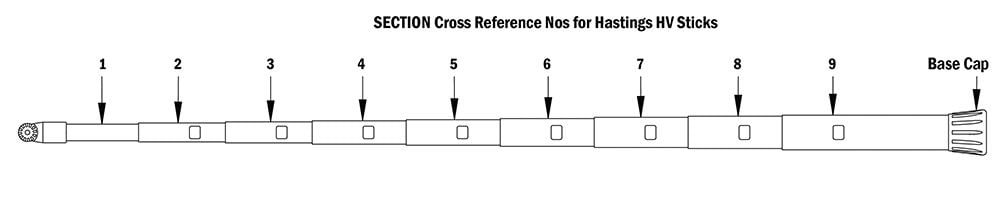

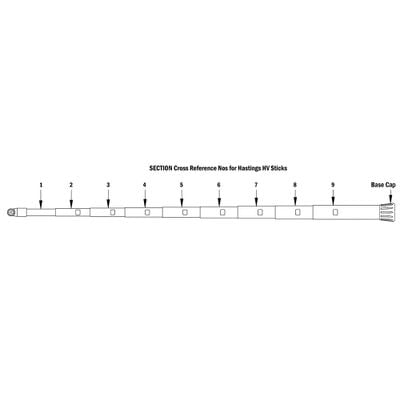

HV Stick Part Nos

Part #Section 1Section 2Section 3Section 4Section 5Base Cap
HV-208 A20296 A20260 A20259 A20258 A20264 P14037
HV-312 A20267 A20268 A20269 A20270 A20376 P14037
HV-212 A20256 A20255 A20254 - - P18020
HV-216 A20256 A20255 A20254 A20253 - P18027
HV-220 A20256 A202055 A20254 A20253 A20252 P18028
