Link stick, spiral - eye, 390mm insulated, 700mm OAL, WLL 1587kg, Chance

Link stick, spiral - eye, 390mm insulated, 700mm OAL, WLL 1587kg, Chance


Code: H4722
Brand:
Product Details

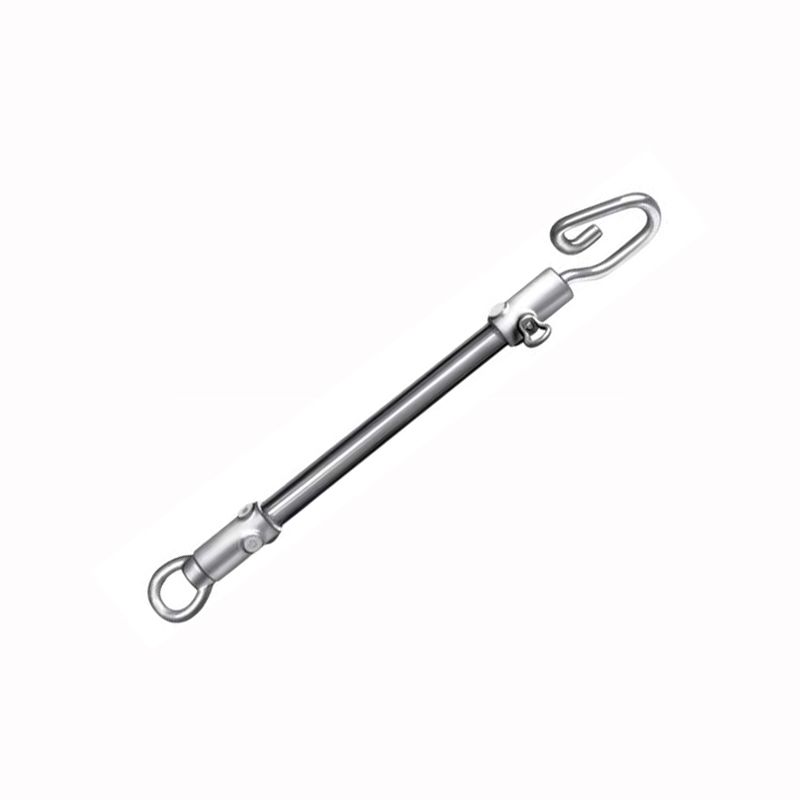

Link stick, spiral - eye, 390mm insulated, 700mm OAL, WLL 1587kg, Chance


The Chance Spiral Link Stick is used in lieu of a strain link stick in close places where the lineman cannot safely install a strain link stick by hand. A lifting eye on the head ferrule enables the lineman to guide the Spiral Link Stick to the conductor with a hotstick. The pole of the Spiral Link Stick is made of 1-1/4" Epoxiglas®.

  • Ferrule castings are of heat-treated aluminum alloy; spiral hook and butt ring of galvanized steel
  • 390mm insulated
  • 700mm Overall Length
  • WLL 1587kg
  • Tested per OSHA & ASTM F711

Part No

Type

OD

Pole Length

OAL

Max Wire Size Ø

WLL

Weight

9466

Roller

32mm

610mm

1065mm

31.75mm

450kg

1.8kg

9467

32mm

1220mm

1675mm

31.75mm

450kg

2.1kg

9468

32mm

1830mm

2285mm

31.75mm

450kg

2.4kg

3480

Spiral

25mm

305mm

610mm

28.19mm

905kg

1.3kg

3481

25mm

610mm

915mm

28.19mm

905kg

1.5kg

3482

25mm

915mm

1220mm

28.19mm

905kg

1.7kg

3483

25mm

1220mm

1525mm

28.19mm

905kg

1.9kg

H4722

32mm

390mm

700mm

31.75mm

1587kg

1.7kg
