Cable Pusher, Electric 7kN, 1.5kW, 30-150mm OD Cable range, Lancier
Cable Pusher, Electric 7kN, 1.5kW, 30-150mm OD Cable range, Lancier


Code: EKR700
Brand: Lancier
Product Details
Cable pusher, electric 7kN, 1.5kW, 10m/min, 30-150mm OD cable range, Lancier

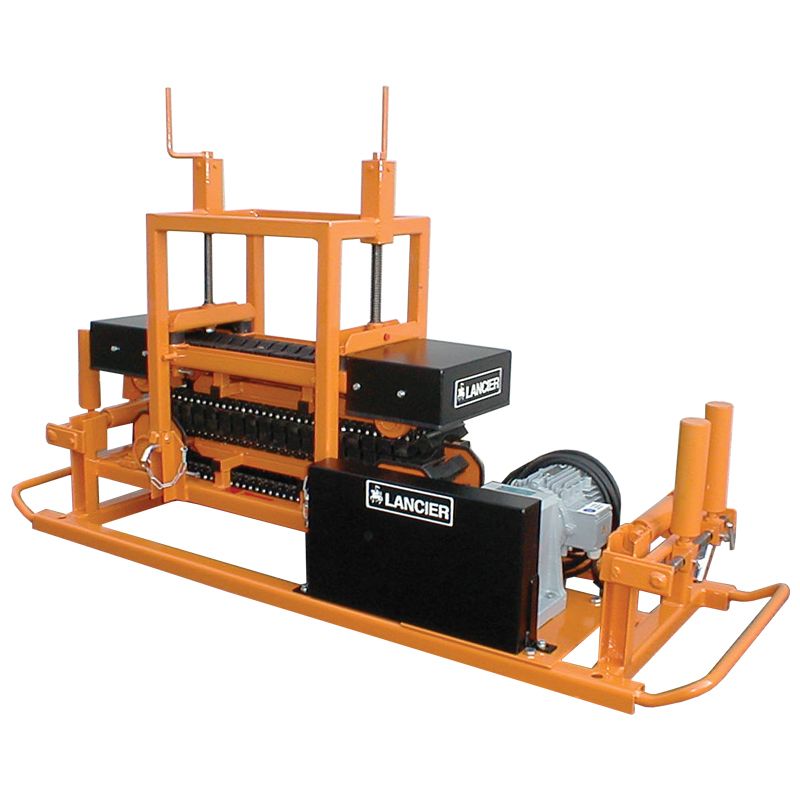

Lancier Cable Pusher

  • Used for underground cable pushing
  • Installation forces are applied evenly across cable with caterpillar track pusher, rather than being pushed via wheel
  • Suitable for narrow trenches
  • Can be linked in series
  • Optional multiple unit control available

Low stress installation method for delicate underground cables

Field of use
The caterpillar cable-roller EKR700 is used for laying delicate underground cables which are sensitive to pulling-tension and surface pressure. The EKR700 may be used as a cable forward feeding roller either in association with a cabling winch, to reduce the pulling tension on the cable, or as a cable-laying roller on its own.

Max Pulling

7kN

Max Speed

10m/min

Cable Ø

30 - 150mm

Engine Type

Electric

Engine Output

1.5kW

Operating Voltage

400 V, 3-phase, 50Hz

Dimensions LxWxH

1720 x 550 x 1100mm

Options

Series connection with switch board
+ cable remote control

Weight

185kg
