Voltmeter, phasing, digital, dual stick, 50v-40kV with hard carry case, HDE
Voltmeter, phasing, digital, dual stick, 50v-40kV with hard carry case, HDE


Code: DVM-80
Brand: HD Electric
Product Details
Voltmeter, phasing, digital, dual stick, 50v-40kV with hard carry case, HDE

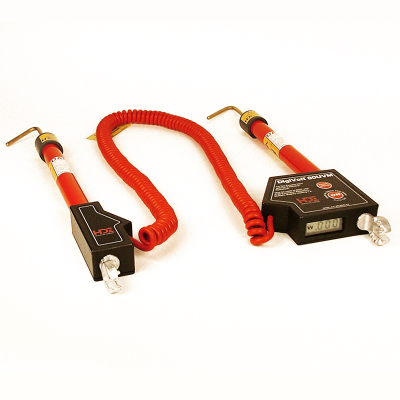

The DVM-80UVM is a compact, high accuracy dual stick voltmeter and phasing set with capacitive test point mode and peak hold. The DVM-80UVM measures voltage from 5V up to 40kV and up to 80kV with a pair of optional add-on resistors. The two-stick design can be used in both overhead and underground applications. The DVM-80 units incorporate Phase Accurate Technology, which makes all voltage readings, whether made from phase to phase or phase to earth, accurate and repeatable to within 1%.

  • Peak Hold mode
  • Triple auto ranging 3.5 digit display - reads in kilovolts from 5 Volts to 80kV
  • Highly accurate, within 1% of the reading
  • Backlit display for easy reading in bright or dark conditions
  • Measures AC and DC voltages
  • Use on secondary voltages, starting at 5 Volts
  • Auto shut-off
  • Battery - Powered by a standard 9V alkaline battery
  • Weight of Voltmeter (without probes) 1kg

Overhead & Underground Use
