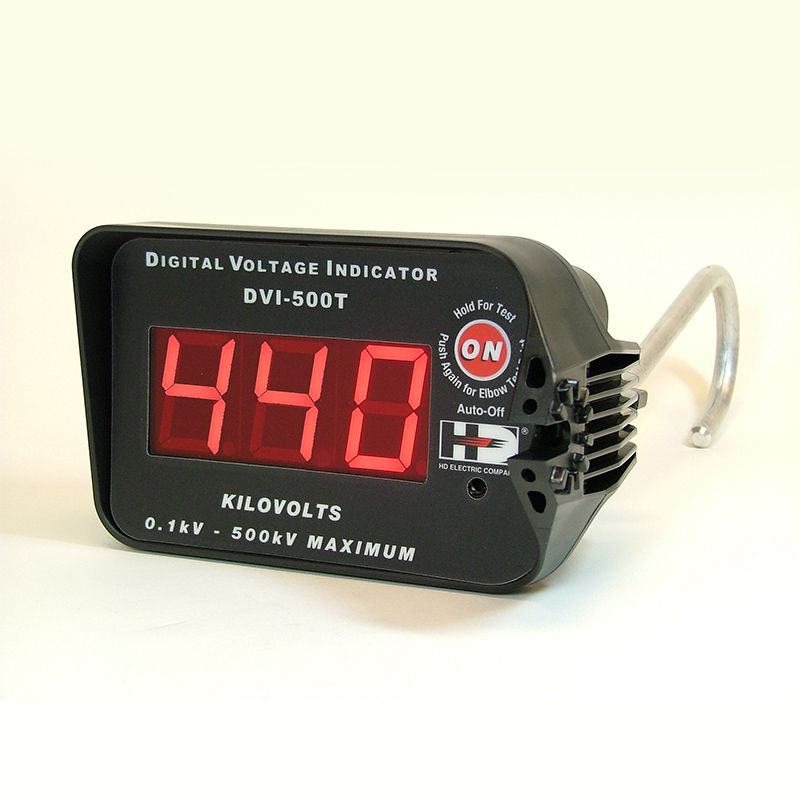

Indicator, voltage up to 500kV, 50Hz, kit, case, HDE
Indicator, voltage up to 500kV, 50Hz, kit, case, HDE


Code: DVI-500T-50-K02
Brand: HD Electric
Product Details
Indicator, voltage up to 500kV, 50Hz, kit, case, HDE


The DVI-500T indicates voltage from 0.1kV – 9.9kV and from 10kV - 500kV with no range selector switch or settings required, making it the most user friendly indicator in the market.

Designed for Transmission and Distribution Networks in both Overhead and Underground applications

  • For use on system voltages up to 800kV
  • (reads up to 500kV phase to earth)
  • Large LED display indicates the phase to earth voltage level
  • Display is easy to read in all lighting conditions
  • Voltage readout allows the user to distinguish between
  • nominal and induced voltages
  • Audible indication when voltage is detected
  • Measure elbow test points with the DVI-500T
  • Built-in universal spline for standard hotstick attachment
  • Built-in self test to verify proper operation
  • Powered by a field replaceable 9V alkaline battery
  • Compact, rugged and lightweight polycarbonate housing

Will detect induced voltage
