Tester, micro ohmmeter, 600A DC max, 5m leads, digital, on board memory, software, Megger

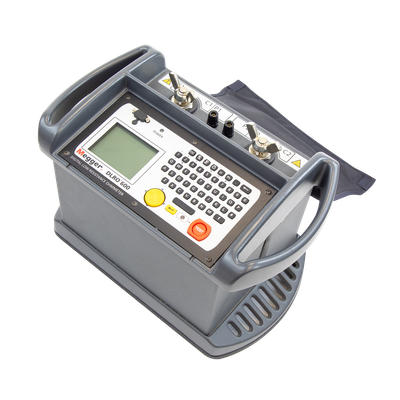

600 A micro-ohmmeter
The Megger DLRO600 is a 600 A micro-ohmeter that measures resistances between 0.1 μΩ and 1 Ω at high currents. This versatile instrument can provide test currents from 10 amps up to 600 amps DC subject to the load resistance and supply voltage and uses a four-terminal measurement technique to cancel the resistance of the test leads from the measurement.
Features
- Small and weighs less than 15 kg
- Test currents from 10 A to 200 A DC
- 0.1 µΩ best resolution
- On-board memory for up to 300 test results and notes
- RS232 port to download stored results or for real-time output to a printer
- Supplied complete with 5 m test leads and download software
Technical specifications
| Data storage and communication | Max output current (DC) | Power source | Safety features |
|---|---|---|---|
| RS-232 port | 600 A | Mains | IEC61010-(1995) |
Need to know which insulation tester is the right one for you? Contact our technical team for support.
