200 A micro-ohmmeter

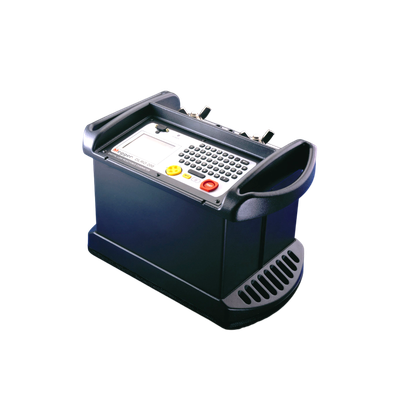

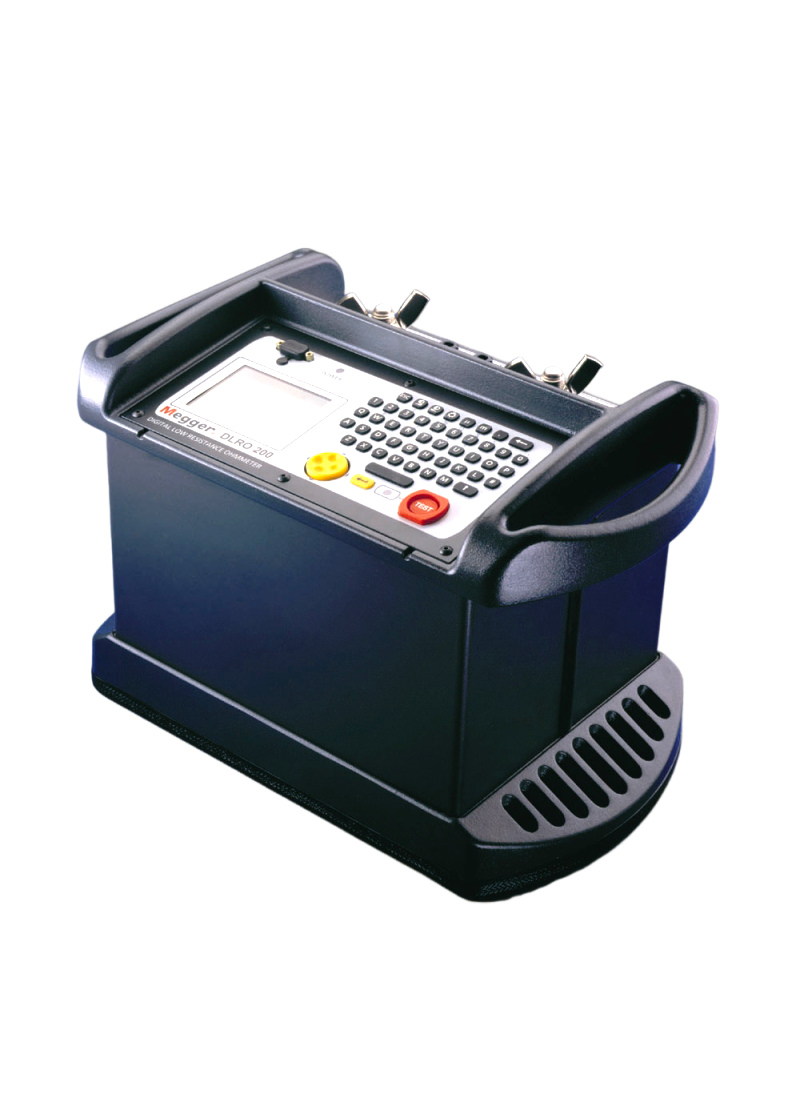

The Megger DLRO200 is a compact, portable micro-ohmmeter designed for precise low resistance measurements from 0.1 µΩ to 1 Ω at currents up to 200 A DC. It is ideal for testing applications like circuit breaker contacts and busbar joints, featuring a user-friendly interface with a large LCD screen, on-board memory for 300 test results, and an RS232 port for data export.
Features
- Small and weighs less than 15 kg
- Test currents from 10 A to 200 A DC
- 0.1 µΩ best resolution
- On-board memory for up to 300 test results and notes
- RS232 port to download stored results or for real-time output to a printer
- Supplied complete with 5 m test leads and download software
Technical specifications
| Data storage and communication | Max output current (DC) | Power source | Safety features |
|---|---|---|---|
| RS-232 port | 200 A | Mains | IEC61010-1 |
Need to know which insulation tester is the right one for you? Contact our technical team for support.
