Conductor Gauge, ACSR various sizes, EQL range, machined Al

Conductor Gauge, ACSR various sizes, EQL range, machined Al


Code: CG-EQL-ACSR
Brand: TEN
Product Details

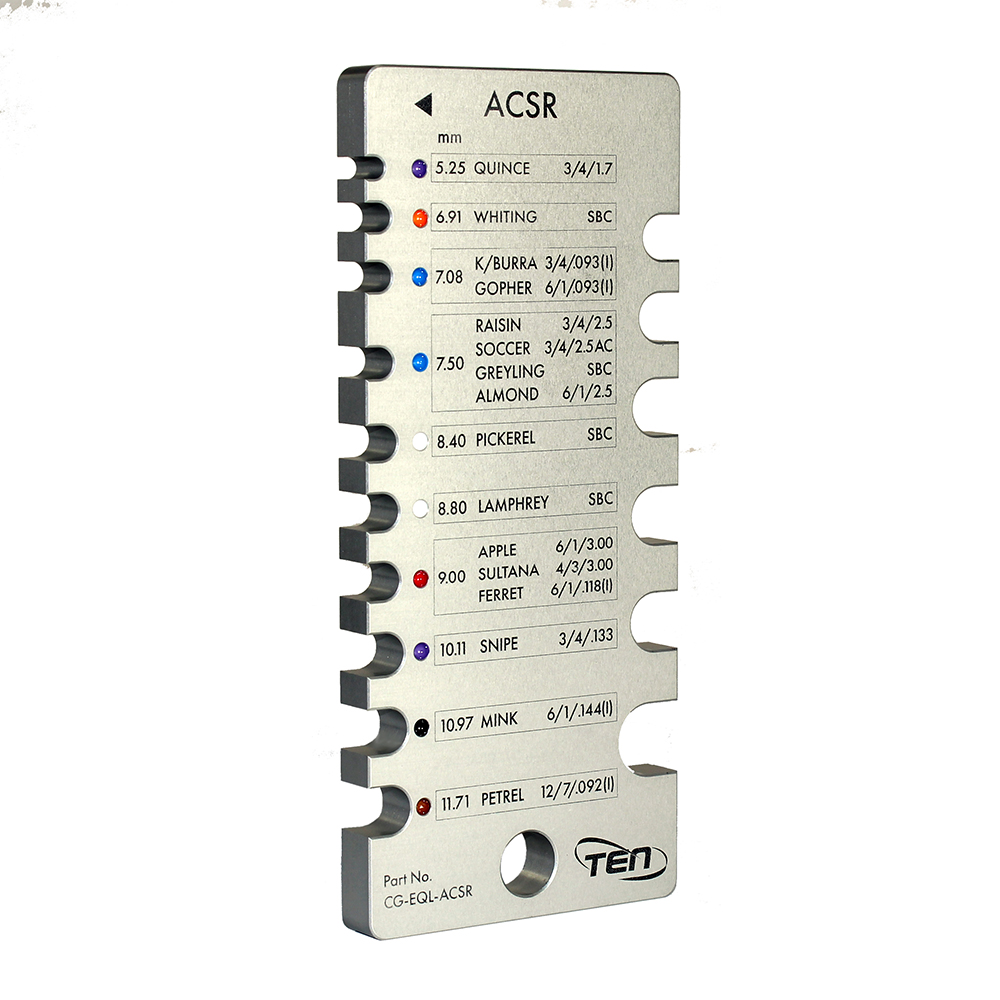

Conductor Gauge, ACSR various sizes, EQL range, machined Al


Distribution Conductor Gauges

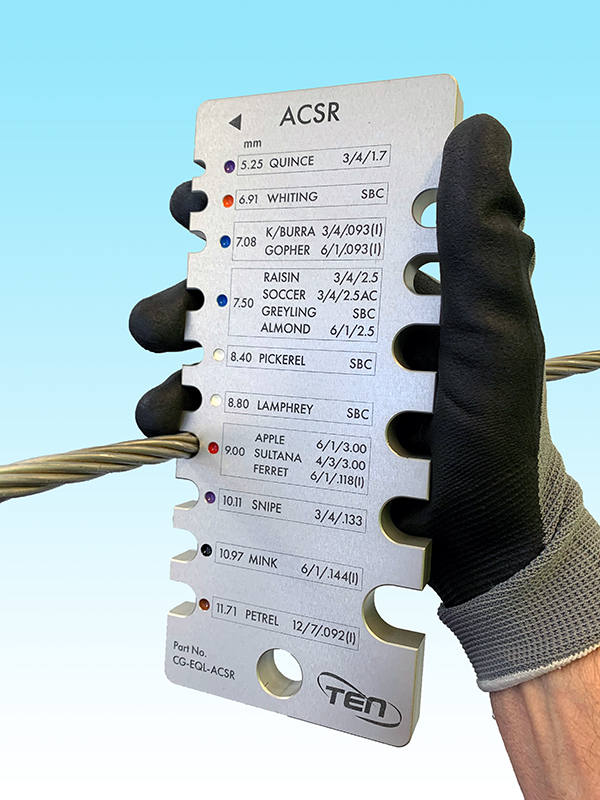

Quickly & Easily identify common overhead electrical distribution conductor or wire sizes in AL, CU & ACSR

Markings include Conductor Name, Stranding and Overall Diameter

Part No. - CG-EQL-ACSR

Covers common OH Distribution ACSR conductors

Features:
  • Hole in base for use with a shotgun stick and hanging storage
  • Imperial and metric sizes included
  • Precision machined from Lightweight Aluminium Alloy

Specifications

Part Number

Conductor Range

Dimensions

Weight

CG-EQL-ALCU

Copper

7/.064 – 4.87mm to

19/2.75 – 13.8mm

Aluminium

Locust – 7/.093 - 7.08mm to

Taurus - 19/4.75 - 23.80mm

Length: 257mm

Width: 91mm

Thickness: 14mm



750g

CG-EQL-ACSR

ACSR

Quince - 5.25mm to

Wolf – 18.13mm

Length: 209mm

Width: 91mm

Thickness: 14mm

650g
