Winch Hoist, Capstan Hydraulic 454kg (1000lbs) Chance
Winch Hoist, Capstan Hydraulic 454kg (1000lbs) Chance

Code: C308-1180
Brand: Chance
Product Details
Winch Hoist, Capstan Hydraulic 454kg (1000lbs) Chance

Chance Capstan Winches - 454kg Capacity

Chance Capstan Winches are available for all on-site situations.

Hydraulic - Powered by 700bar (10,000psi) Hydraulic Pump
230V AC - Plug into any single-phase power outlet or a truck inverter
Petrol - Utilise independently of all other power supplies

Improved design features a multi-planetary drive/backstop clutch, assembled on the centre shaft of the steel gear-case with full-length internal teeth.
This design handles more rugged conditions, extends life and reduces maintenance
For improved load control, the steel capstan drum features a nickel-plated rope surface, a larger radius at load-line wrap and a rope hook.

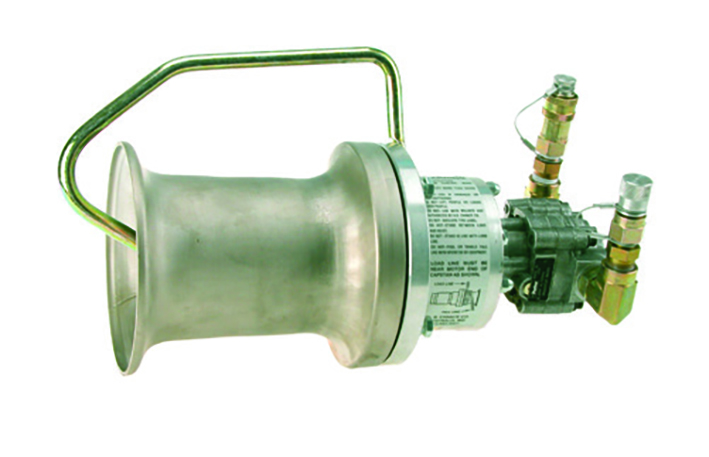

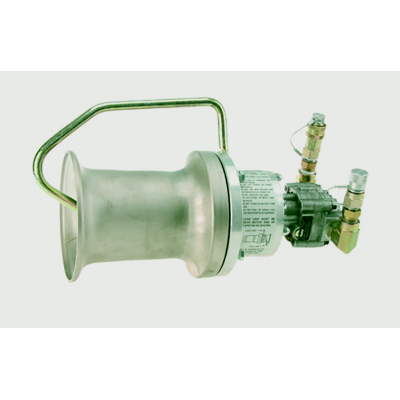

Hydraulic Winch - 700bar (10,000psi)

Part No. C308-1180

Capacity (kg)Speed at Max Load (m)Source required for speedWt (kg)
45428.330lt per min @ 10,000psi12.9
