Wire Grip 4T, Bare AL, ACSR, 20-35mm, Safety Latch, Spring Lock, NGK

Ten Group // PULLING & HAULING // Wire Grips // Wire Grip NGK // Wire Grip 4T, Bare AL, ACSR, 20-35mm, Safety Latch, Spring Lock, NGK

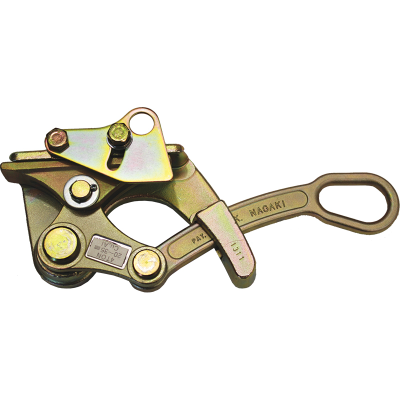

Wire Grip 4T, Bare AL, ACSR, 20-35mm, Safety Latch, Spring Lock, NGK

Code: AL-4TON-GRIP
Brand: NGK
Product Details
Grip, wire, 20-35mm, Bare AL, ACSR, 40kN, 4T, WLL, safety latch, spring lock, NGK

Product Features and Benefits
Documentation

Nagaki AL-4TON-GRIP

Part No	Min-Max Dia (mm)	WLL (kN)	Jaw L (mm)	Jaw Type	Wt (kg)	Safety Latch	Suitable for wire/cable	Eye Width (mm)	Notes
AL-4TON-GRIP	20-35	40	140	Smooth	3.7	YES	ACSR and Bare Al	34	Fine smooth jaw, lower risk of conductor damage

Fine smooth jaws to minimise conductor damage
Manufactured from high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated
Safety latch on all NGK models
Special shaped pulling eyes suit all brands of strap pullers

Other Nagaki Grips Available

Part No	Min-Max Dia (mm)	WLL (kN)	Jaw L (mm)	Jaw Type	Wt (kg)	Safety Latch	Suitable for wire/cable	Eye Width (mm)	Notes
MINI-GRIP	1-10	5	NA	Serrated	0.3	NO	Steel Rod, Barbed and Catenary Wire	16	Curved Jaw
SD-L-GRIPL/W	2.6-15	10	34	Serrated	0.6	YES	Steel Rod/Wire, Bare Cu and Catenary Wire	26	Large Eye
MESSEN-LGRIP-L	4-12	10	50	Serrated	0.7	YES	Steel Wire, Bare Cu, Al Clad Steel and Catenary Wire	26	Double Lock Nut
SS-GRIP	5-12	10	160	Slight Serrations	1.6	YES	Telephone Cable	26	-
1TON-L-GRIP	4-22	10	60	Serrated	1.4	YES	Bare Cu, Covered Conductor and Catenary Wire	32	Large Eye
2TON-L-GRIP	4-22	20	60	Serrated	1.4	YES	Bare Cu, Covered Conductor and Catenary Wire	32	Large Eye
MIDDLE-L-GRIP	5-25	20	110	Serrated	1.8	YES	Bare Cu, Covered Conductor and Catenary Wire	32	Large Eye
CCT-GRIP	5-25	20	110	Serrated	1.8	YES	CCT Up to 180mm2 Up to 80mm2	32	Large Eye
3TON-GRIP	8-22	30	120	Serrated	3.1	YES	Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire	34	-
4TON-GRIP	13-28	40	150	Serrated	5.0	YES	Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire	50	-
6TON-GRIP	13-28	60	150	Serrated	5.2	YES	Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire	25	-
10TON-GRIP	18-32	100	180	Serrated	10.0	YES	Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire	60	-
AL-L-GRIP	5-22	10	60	Smooth	1.1	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-2TON-GRIP-L	5-20	20	100	Smooth	1.7	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-MIDDLE-GRIP*	5-25	20	110	Smooth	1.8	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-MIDDLE-GRIP-L	5-25	20	110	Smooth	2.9	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-LARGE-GRIP*	16-32	20	110	Smooth	2.0	YES	ACSR and Bare Al	32	Fine smooth jaw, lower risk of conductor damage
AL-3TON-GRIP	8-22	30	120	Smooth	3.0	YES	ACSR and Bare Al	34	Fine smooth jaw, lower risk of conductor damage
AL-4TON-GRIP	20-35	40	140	Smooth	3.7	YES	ACSR and Bare Al	34	Fine smooth jaw, lower risk of conductor damage
HOT-M-GRIP	5-25	20	110	Smooth	2.0	YES	ACSR, Bare Al and Bare Cu	32	Hot Stick Rings
HOT-L-GRIP	16-32	20	110	Smooth	2.0	YES	ACSR, Bare Al and Bare Cu	32	Hot Stick Rings
AL-10TON-GRIP	32-46	100	300	Smooth	14	YES	Bare Al and ACSR	63	Smooth Jaw
TROLLEY-GRIP1L-S	5-16	20	100	Serrated	1.5	YES	Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope	32	Large Eye
TROLLEY-GRIP-2-L	8-20	20	150	Serrated	2.8	YES	Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope	25	Large Eye
TROLLEY-GRIP-4-L	13-28	40	150	Serrated	5.2	YES	Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope	32	Large Eye
ABC-GRIP-S	2x16 and 4x35mm2	6.0	130	Serrated	1.8	YES	ABC 2 x 16mm2 tp 4 x 35mm2	32	Large Eye
ABC-GRIP	4x35 and 4x95mm2	8.5	190	Serrated	3.3	YES	ABC - 4 x 35mm2 to 4 x 95mm2	35	Large Eye
ABC-GRIP-L	4x95 and 4x150mm2	20	190	Serrated	3.3	YES	ABC - 4 x 95mm2 to 4 x 150mm2	35	Large Eye

TEN Group_NGK Grip Selection Chart-1021.pdf
