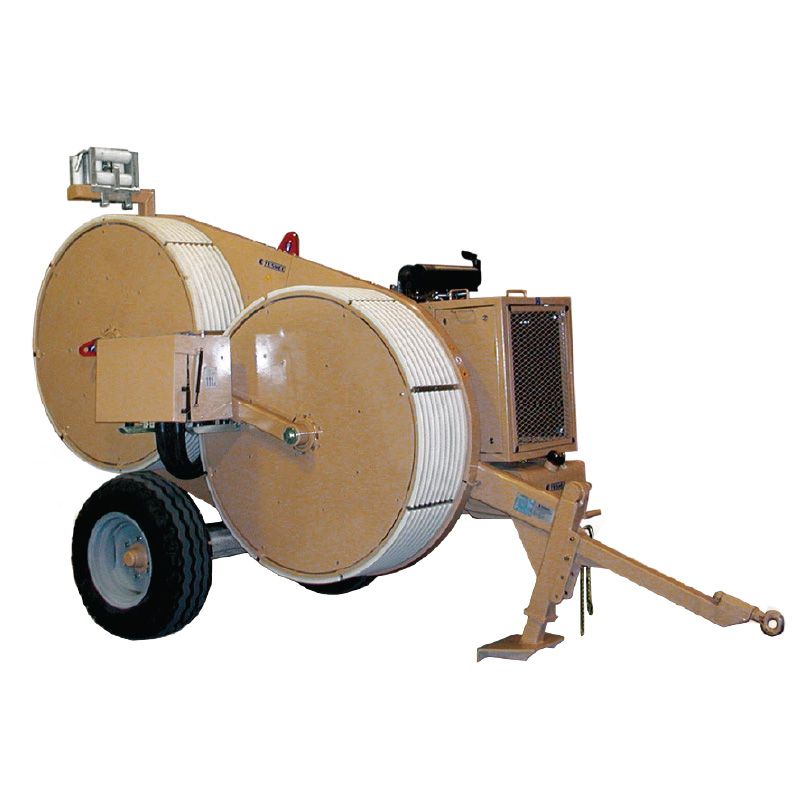

45kN Hydraulic Puller Tensioner, Tesmec
Code:
AFS404
Brand:
Tesmec
Product Details
Hydraulic puller, tensioner, max pull 45kN at 2.7km/h, max speed 5km/h at 25kN, Tesmec
Product Features and Benefits
Suitable to string one or two ropes or bundled conductors
Bull wheels lined with high resistance interchangeable nylon sectors
Negative self-acting hydraulic brake
Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Diesel engine - water cooled
Digital meter counter
Control instruments for hydraulic system and Diesel engine
Rigid axle for towing at max speed of 30km/hr
Mechanical parking brake
Hydraulic power pack to control up to 2 reel stands with hydraulic motor or 2 reel winders
Gearbox with 3 operating positions; Neutral, Low tension (1 - 6kN) & Nominal tension
Mechanical front stabiliser
Grounding device on board
Machine weight 3000kg excluding fluids
PERFORMANCE
Puller max pull 45kN
Puller speed at max pull 2.7km/hr
Puller max speed 5km/hr
Puller pull at max speed 25kN
Tensioner max tension 45kN
Tensioner max speed 5km/hr
Engine Output 63kW
Bull wheel Ø 1500mm
Max Conductor Ø 34mm
Max Rope Ø 16mm
OPTIONS
Pull Recorder DLR300
Cable Remote Control Kit (Instrument not included) ALL051
Electronic pull and speed recorder kit (Instrument not included) ALL053
Radio remote control kit (Instrument not included) ALL059

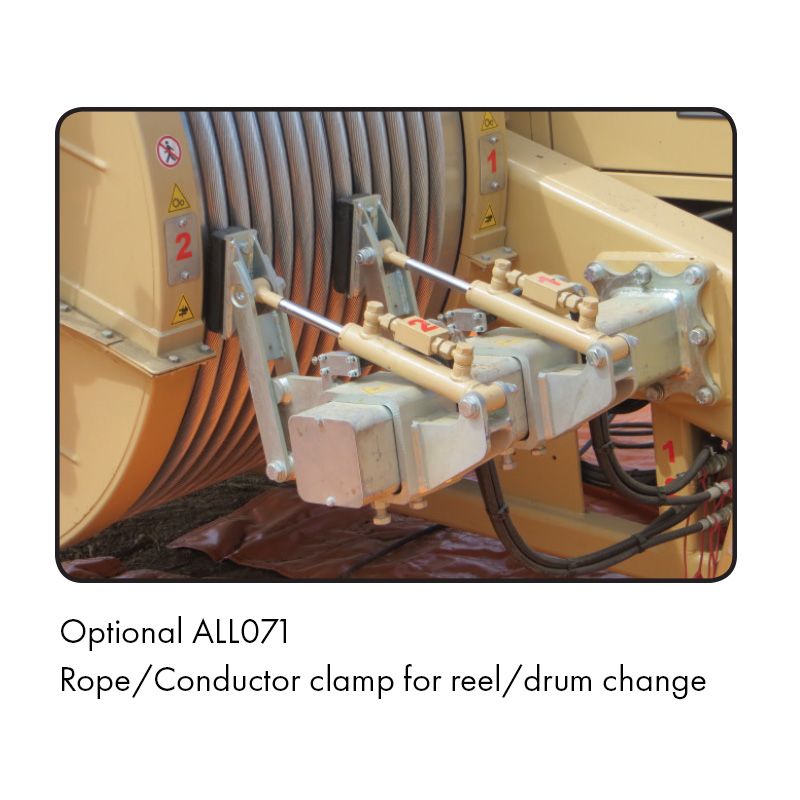

Rope/Conductor clamp for reel/drum change operations ALL071
Hire Also Available from TEN Hire
