Grip, 4 bolt, pocketbook, 11.8mm OD, Max tension 2267kg

Grip, 4 bolt, pocketbook, 11.8mm OD, Max tension 2267kg


Code: 4B-465
Brand: Unspecified
Product Details
Grip, 4 bolt, pocketbook, 11.8mm OD, Max tension 2267kg

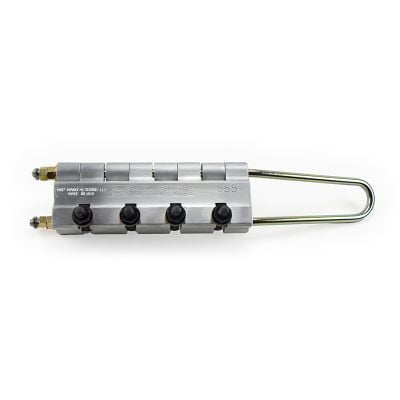

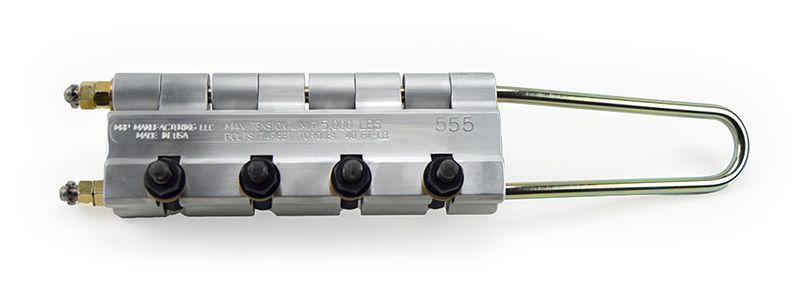

Pocketbook Grip 4 Bolt

  • 4 Bolt Pocketbook Comealong Grips for the pulling of wire up to an initial sag-tension; self-contained unit – no loose parts. Our grips are modeled from industry standard. Clamp down bolts are peened so when opened for installation, flange nuts will not be lost. Features: Length: 21.2″ overall Weight: 10.5 lbs. Maximum tension limit: 5,000 lbs or 50% of the rated strength of the conductor, whichever is smaller Size Range: .360” – .875” diameter Body: Extruded aluminum Bolt size: 1/2” steel Bail: 1/2” steel, trivalent zinc chromate finish Torque: 40 ft-lb Tool marking: Rating, torque and diameter clearly marked on tool
