Siemens Portable Switch for Temporary Isolation

Whilst traditional in-line tension disconnects provide line crews with a way to temporarily isolate a line at non-designated switching locations, however, the lack of a ganged switching capability creates operational inefficiencies due to:

• Restrictions in load breaking capability
• Restrictions in load pickup
• The risk of ferro-resonance due to single phase switching operations
• The additional time to isolate upstream devices prior to operating the in-line disconnect

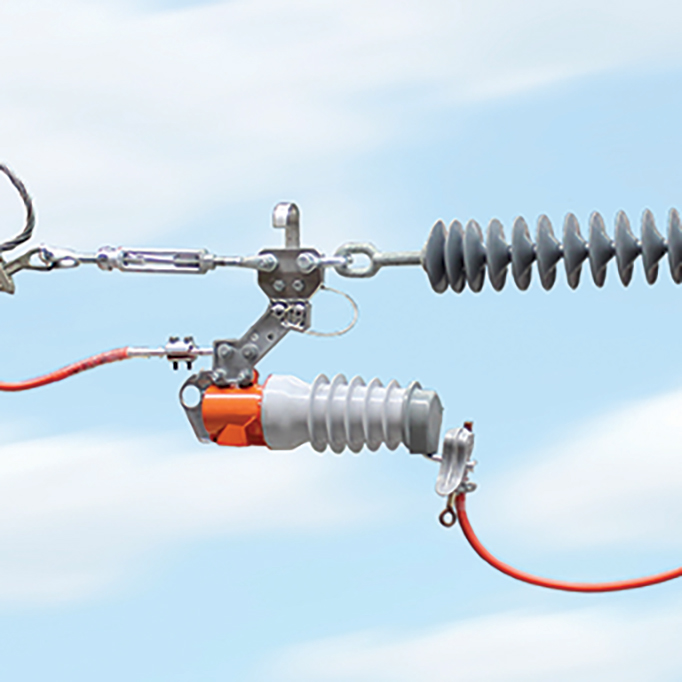

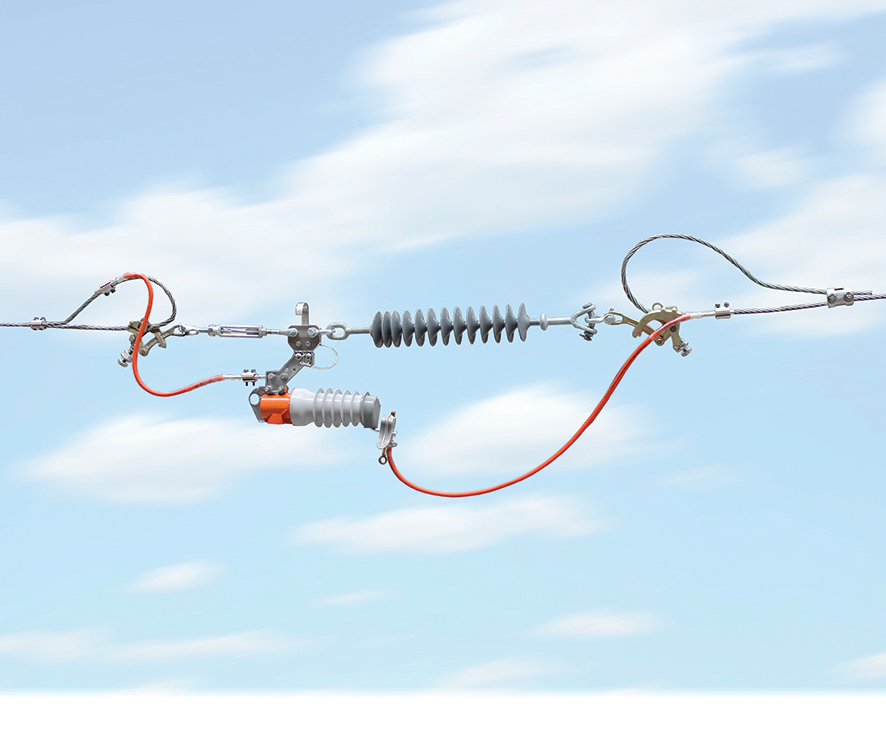

Therefore, it is common that a switching sheet may require an additional 20 or more items to remove load or to provide precautionary isolation prior to breaking bridges or opening the in-line disconnect. Siemens has addressed all these problems by adapting the switching unit of the proven Fusesaver circuit breaker into a pre-configured 3-phase synchronous portable switch kit. The switch units are suitable for in-line tension mounting for simple installation and visible isolation.

Key user benefits

• Self powered from on board battery
• No configuration required

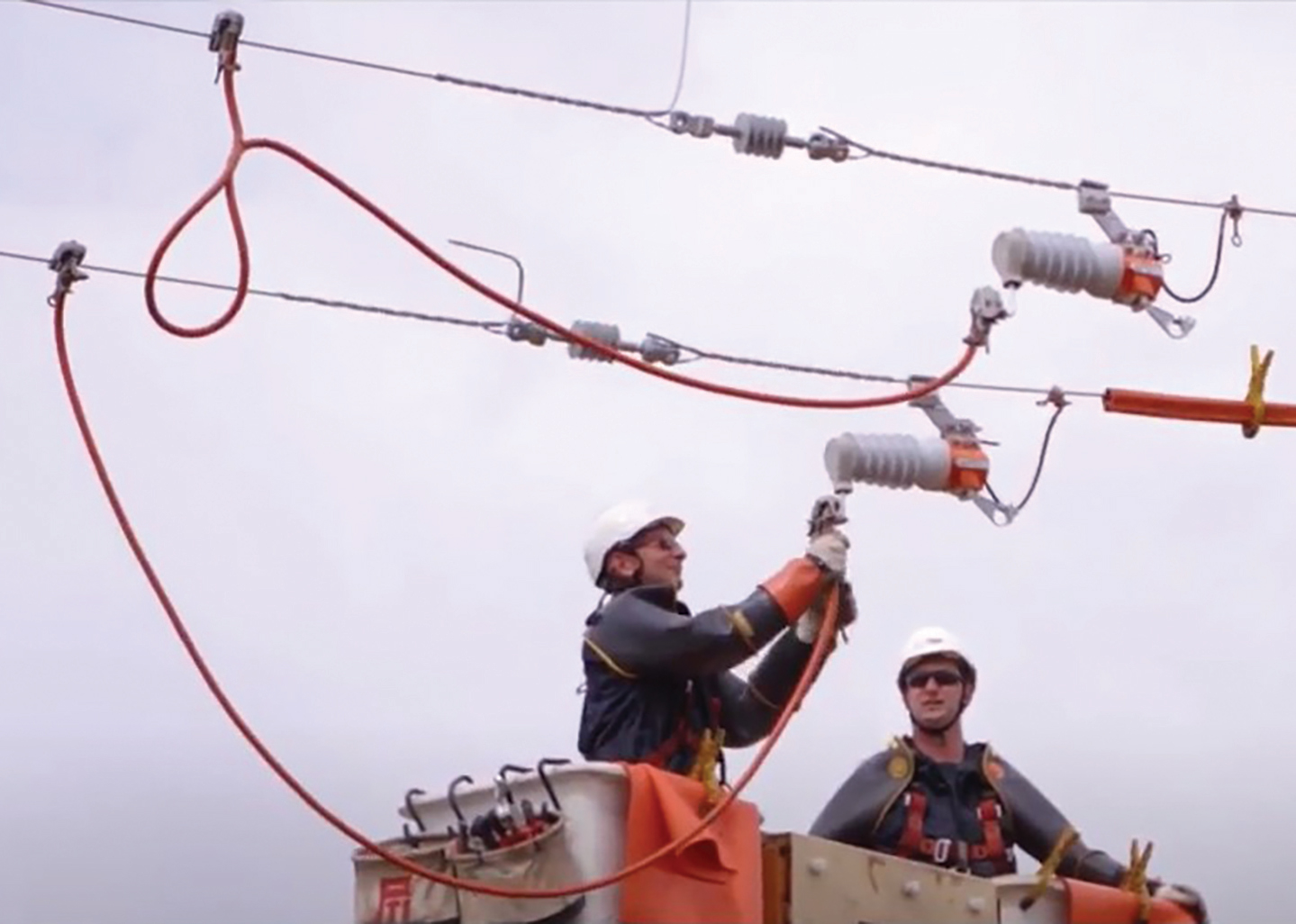

• Reduced day to day operating cost as switching crews can operate from an EWP or ground
• Reduced potential for operator error during switching procedures with simple one button operation
• Complete self contained carry case
• Access live data from the line using the Siemens Connect PC application

Kit Details

Standards

The Siemens Portable Switch is based on the Fusesaver Circuit Breaker that has been type tested to the applicable requirements of IEC 62271-100.

See attached data sheet for ordering information
