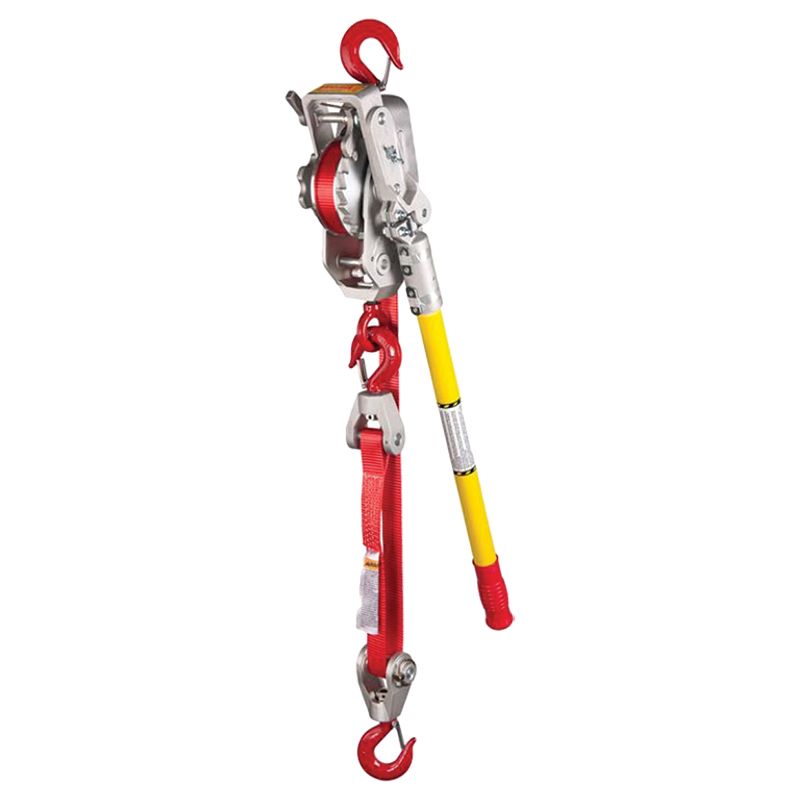

Hoist, ratchet, web, single 4.7m/680kg, double 2.2m/1360kg lightweight, Lug-All
LUG-ALL 3-A-1300-ANZ
Web Strap Ratchet Hoists
- Positive load holding in all environments - interlocking pawl mechanism, no load breaks to slip or fowl
- Ease of operation - Self lubricating bearings throughout housing and on pulley assures smooth operation
- Stress Link - Signals the operator by breaking replaceable link before overloading hoist
- Double flanged drum prevents webstrap from coming in contact with ratchet teeth
- Open frame construction allowing ease of cleaning, greasing and visual inspection
- Meet rigorous ANSI/ASME B30.21-2014 standard for 'manually lever operated hoists'
| Part No | Frame Size | Feature | Single Line | Double Line | Handle Length (mm) | Wt (kg) | ||
|---|---|---|---|---|---|---|---|---|
| Capacity (kg) | Max (m) | Capacity (kg) | Max (m) | |||||
| Standard Models | ||||||||
| 2-A-1300-ANZ | Small | Standard | 450 | 2.9 | 900 | 1.3 | 400 | 4.6 |
| 25-A-1300-ANZ | Small | Lightweight | 680 | 2.1 | 1360 | 1.1 | 330 | 4.5 |
| 3-A-1300-ANZ | Medium | Standard | 680 | 3.4 | 1360 | 1.7 | 510 | 6.3 |
| 35-A-1300-ANZ | Medium | Lightweight | 680 | 4.7 | 1360 | 2.2 | 760 | 5.8 |
| 40-A-ANZ | Medium | Lightweight | 900 | 2.8 | 1814 | 1.2 | 910 | 6.0 |
Convertible Models
- All the parts to convert from double line to single line operation are on the hoist
- Weighs less and has more headroom than standard medum frame model
Hot stick rings option also available, please contact TEN for part number information.
