Grip, wire, 5-16mm, steel rope, wire, Cu, trolly cable, 20kN, 2T, safety latch, NGK


Code: 2TON-W-GRIP
Brand: NGK
Product Details:
Grip, wire, 5-16mm, steel rope, wire, Cu, trolly cable, 20kN, 2T, safety latch, NGK

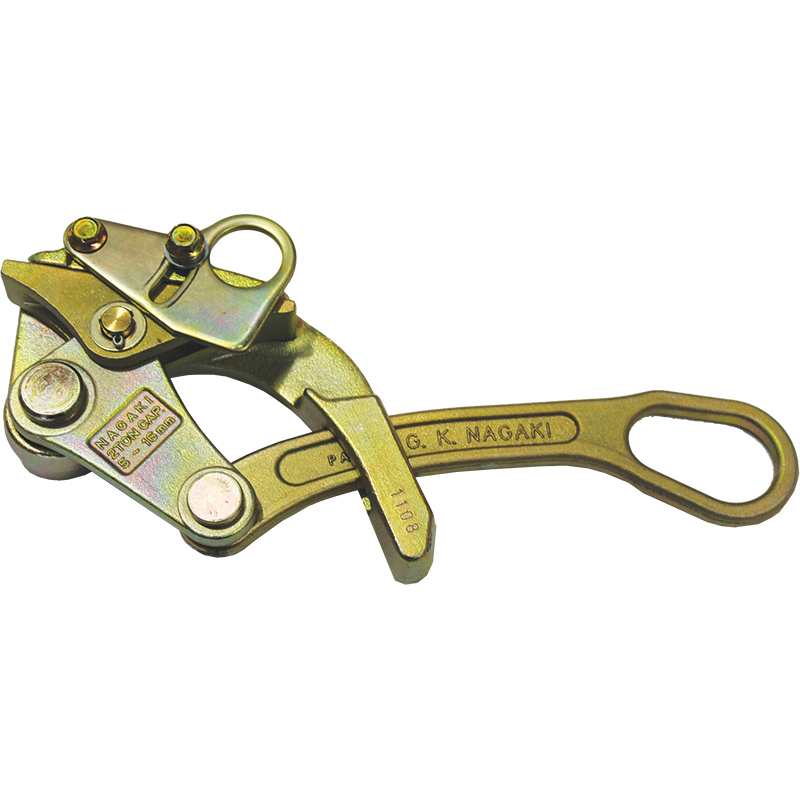

Nagaki 2TON-W-GRIP

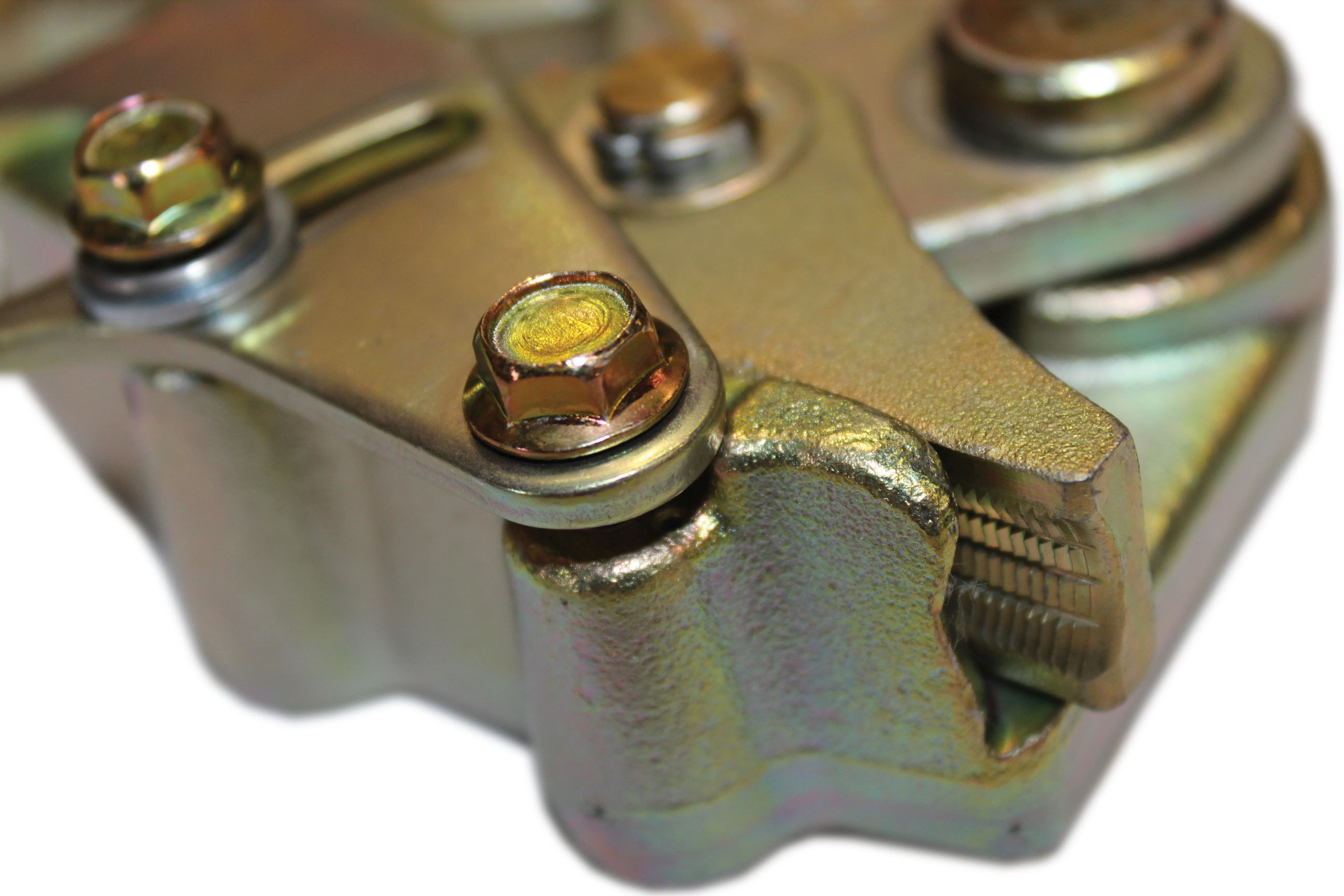

  • Ideal for Stay-wire, serrated jaws for maximum wire grip, safety latch and large eye
  • Made in Japan from Quality Japanese materials
  • Manufactured from high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated
  • Safety latch on all NGK models
  • Special shaped pulling eyes suit all brands of strap hoists/pullers



Part No Min-Max Dia (mm) WLL (kN) Jaw L (mm) Jaw Type Wt (kg) Safety Latch Suitable for wire/cable Eye Width (mm) Notes
2TON-W-GRIP 5-16 20 100 Serrated 1.8 YES Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire 32 Large Eye



Other Nagaki Grips Available

Part No Min-Max Dia (mm) WLL (kN) Jaw L (mm) Jaw Type Wt (kg) Safety Latch Suitable for wire/cable Eye Width (mm) Notes
MINI-GRIP 1-10 5 NA Serrated 0.3 NO Steel Rod, Barbed and Catenary Wire 16 Curved Jaw
SD-L-GRIPL/W 2.6-15 10 34 Serrated 0.6 YES Steel Rod/Wire, Bare Cu and Catenary Wire 26 Large Eye
MESSEN-LGRIP-L 4-12 10 50 Serrated 0.7 YES Steel Wire, Bare Cu, Al Clad Steel and Catenary Wire 26 Double Lock Nut
SS-GRIP 5-12 10 160 Slight Serrations 1.6 YES Telephone Cable 26 -
1TON-L-GRIP 4-22 10 60 Serrated 1.4 YES Bare Cu, Covered Conductor and Catenary Wire 32 Large Eye
2TON-L-GRIP 4-22 20 60 Serrated 1.4 YES Bare Cu, Covered Conductor and Catenary Wire 32 Large Eye
MIDDLE-L-GRIP 5-25 20 110 Serrated 1.8 YES Bare Cu, Covered Conductor and Catenary Wire 32 Large Eye
CCT-GRIP 5-25 20 110 Serrated 1.8 YES CCT Up to 180mm2 Up to 80mm2 32 Large Eye
3TON-GRIP 8-22 30 120 Serrated 3.1 YES Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire 34 -
4TON-GRIP 13-28 40 150 Serrated 5.0 YES Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire 50 -
6TON-GRIP 13-28 60 150 Serrated 5.2 YES Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire 25 -
10TON-GRIP 18-32 100 180 Serrated 10.0 YES Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire 60 -
AL-L-GRIP 5-22 10 60 Smooth 1.1 YES ACSR and Bare Al 32 Fine smooth jaw, lower risk of conductor damage
AL-2TON-GRIP-L 5-20 20 100 Smooth 1.7 YES ACSR and Bare Al 32 Fine smooth jaw, lower risk of conductor damage
AL-MIDDLE-GRIP* 5-25 20 110 Smooth 1.8 YES ACSR and Bare Al 32 Fine smooth jaw, lower risk of conductor damage
AL-MIDDLE-GRIP-L 5-25 20 110 Smooth 2.9 YES ACSR and Bare Al 32 Fine smooth jaw, lower risk of conductor damage
AL-LARGE-GRIP* 16-32 20 110 Smooth 2.0 YES ACSR and Bare Al 32 Fine smooth jaw, lower risk of conductor damage
AL-3TON-GRIP 8-22 30 120 Smooth 3.0 YES ACSR and Bare Al 34 Fine smooth jaw, lower risk of conductor damage
AL-4TON-GRIP 20-35 40 140 Smooth 3.7 YES ACSR and Bare Al 34 Fine smooth jaw, lower risk of conductor damage
HOT-M-GRIP 5-25 20 110 Smooth 2.0 YES ACSR, Bare Al and Bare Cu 32 Hot Stick Rings
HOT-L-GRIP 16-32 20 110 Smooth 2.0 YES ACSR, Bare Al and Bare Cu 32 Hot Stick Rings
AL-10TON-GRIP 32-46 100 300 Smooth 14 YES Bare Al and ACSR 63 Smooth Jaw
TROLLEY-GRIP1L-S 5-16 20 100 Serrated 1.5 YES Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope 32 Large Eye
TROLLEY-GRIP-2-L 8-20 20 150 Serrated 2.8 YES Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope 25 Large Eye
TROLLEY-GRIP-4-L 13-28 40 150 Serrated 5.2 YES Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope 32 Large Eye
ABC-GRIP-S 2x16 and 4x35mm2 6.0 130 Serrated 1.8 YES ABC 2 x 16mm2 tp 4 x 35mm2 32 Large Eye
ABC-GRIP 4x35 and 4x95mm2 8.5 190 Serrated 3.3 YES ABC - 4 x 35mm2 to 4 x 95mm2 35 Large Eye
ABC-GRIP-L 4x95 and 4x150mm2 20 190 Serrated 3.3 YES ABC - 4 x 95mm2 to 4 x 150mm2 35 Large Eye
