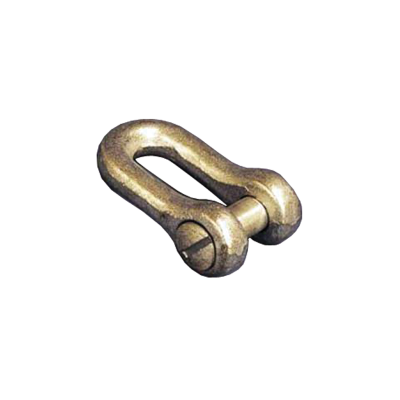

Slotted Bolt D Shackle, Lancier
Slotted Bolt D Shackle,
Lancier
Code: 01969
Brand: Lancier
Product Details
Shackle, Dee, slotted bolt, 20kN, 30mm W, 22mm bolt OD, DIN 82101, Lancier
Brand: Lancier
Product Details
Shackle, Dee, slotted bolt, 20kN, 30mm W, 22mm bolt OD, DIN 82101, Lancier
- D Shackles with slot head for Underground Cable Pulling
- Specially designed for pulling through conduits and pip with no tag on thread shaft
- Slotted Bolt
- Manufactured to DIN 82101
| Part # | WLL | Clear Width | Bolt Diameter | Notes |
|---|---|---|---|---|
| 01965 | 4kN | 14mm | 10mm | DIN 82101 |
| 01966 | 6kN | 17mm | 12mm | DIN 82101 |
| 01967 | 10kN | 21mm | 16mm | DIN 82101 |
| 01968 | 16kN | 27mm | 20mm | DIN 82101 |
| 01969 | 20kN | 30mm | 22mm | DIN 82101 |
| 27727 | 5kN | 17mm | 8mm | Stainless Steel |
| 27729 | 32kN | 27mm | 19mm | Galvanisied |
| 29780 | 10kN | 19mm | 12mm | Galvanisied |
| 37056 | 5kN | 10mm | 5mm | Galvanisied |
