Proving unit, 50/110/230/400V, Volt stick test

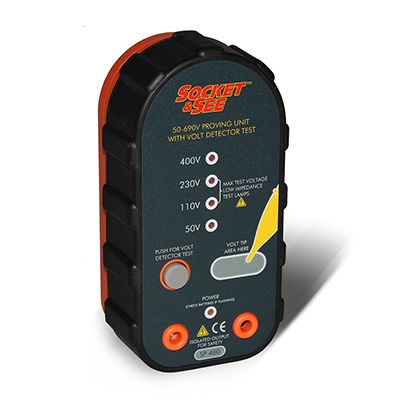

PU400 Proving Unit

The PU400 Proving Unit provides a safe and reliable means of checking the functioning of Multimeters and two pole Voltage Indicators (VIs) before and after use. Additionally they have the capability of checking the operation of Non-Contact voltage detectors. The PU400 is a battery powered proving unit and incorporates a unique and logical safety function - the test voltage generated is at 50Hz to synthesize a genuine test at AC mains supply frequency – so it will always read correct using the AC range of your Tester or Multimeter.
Features
• Intelligent voltage ramp for testing multimeters and VI’s.
• Generates outputs from 50 - 690V with a true AC waveform at 50Hz. This means it will always read correctly using the AC range of your tester or multimeter.
• The PU400 proving unit has a non-contact voltage detector facility.
• Powerful enough to light old filament style lamps.
• Automatic operation and turnoff for ease of use and battery conservation.

Part NoPU400
Output Voltage50 – 690V in five steps (50V, 100V, 230V, 400V, 690V)
Safety ComplianceBS EN 61010-1 : 2010
EMC Compliance61326-1 : 2006
Operating Conditions-10 to +35°C at 95% RH
Output Frequency50Hz Pseudo sine wave
Maximum Output Power10W
Batteries6 x LR6 AA alkaline batteries
Battery Life10 hours with average use when testing high and low power testers
Dimensions68H x 130W x 48D (mm)
WeightWith batteries 350g
