Dillon Quick Check Cable / Wire Tension Meter

Dillon Quick Check Cable / Wire Tension Meter

Code: AWT05-508111
Brand: Dillon
Product Details
Tension meter, quick check, digital, 45kN, 4.75mm-25.4mm, Dillon

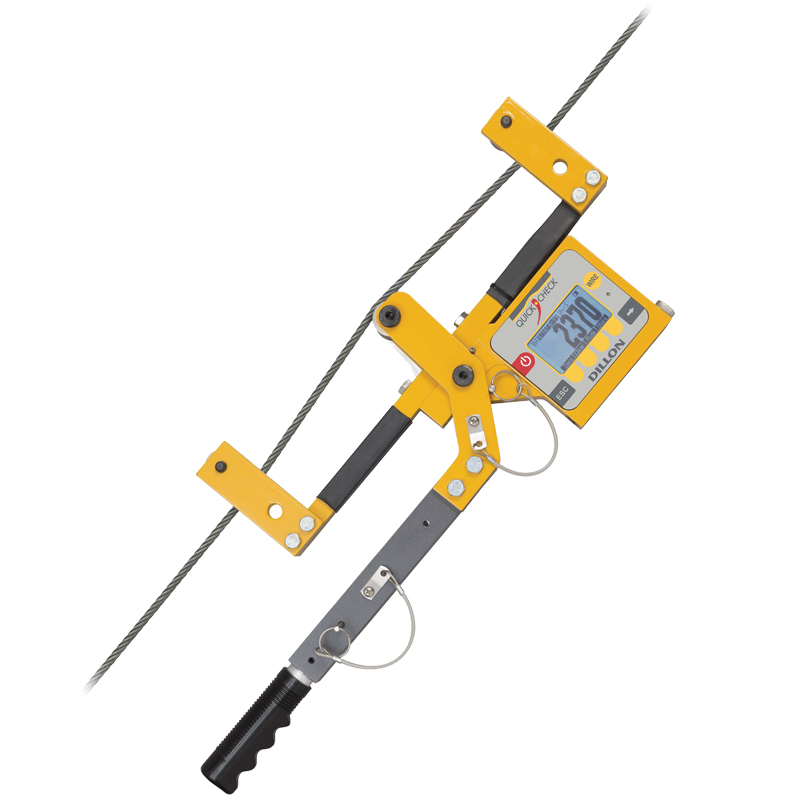

The Dillon Quick-Check Tension Meter quickly measures tension in cable guardrails, guy lines and overhead wires. It installs, measures and removes in seconds. The digital loadcell is highly accurate and requires no lookup or correction tables.

  • Store wire rope readings and export data
  • Ideal for communication tower stay wire data collection
  • Time-saving check-tensioning mode
  • Portable and rugged, designed for outdoor use
  • Built-in averaging saves time and eliminates errors
  • Factory calibrated for up to 20 unique wire sizes and types

The Fastest Cable Tension Meter

The Dillon Quick-Check can be placed on a cable, measure its tension, and removed in under five seconds! There are no complex lookup tables, no conversion charts. The operator can quickly select from 20 different wire sizes and types stored in Quick-Check’s memory. The Check-Tensioning mode graphically displays the current and target tensions for extremely quick setting of line tension. Even the infrequent battery changes are quick.

Broad Application

The Quick-Check can be employed in many industries to ensure proper tensioning. Typical applications include tower and stack guy wires, pretensioned cable barriers, bridges, elevators, winch rope, overhead electric transit wires, fall arrest systems, aircraft cables and utilities.

Tension capacities: 10 kN/1000 kg or 45 kN/4500 kg

Wire sizes: 4.75 mm through 25.4 mm

Accuracy: + 3% instrument capacity (calibrated to specific wire size and type)

Loading error: Cable elongation of only 2mm

Display: Dot-graphic LCD display supports full text and 25mm high digits

Sheave range: Each set accommodates rated wire size and 12mm smaller. Multiple sheave sets may be used.

Suggested wire calibrations: Calibrate each wire diameter needed with the most appropriate sheaves. If two wire types are used of different diameters (e.g. 17-2.75 & 19-2.00), calibrate each type independently.

Environment protection: Suitable for continued outdoor use

Operating range: -20° C to 70° C

Tension units of measure: Pound-force, Kilogram force, Newtons

Resolution: Configurable low/med/high

Size: 250 x 590 x 80 mm

Weight: Approx 5 kg

Recalibration: At user discretion. Commonly 12-24 months; should be more frequent with heavy use.

Approvals: CE

Part #Sheave CodeSuits Wire Diameters
36309-0085 L 4.75mm - 6.5mm
36309-0044 P 4.75mm - 12.7mm
36309-0010 S 6.5mm - 19mm
36309-0101 T 12.7mm - 25.4mm

*Each Part Number includes a set of three Sheaves with bearings
