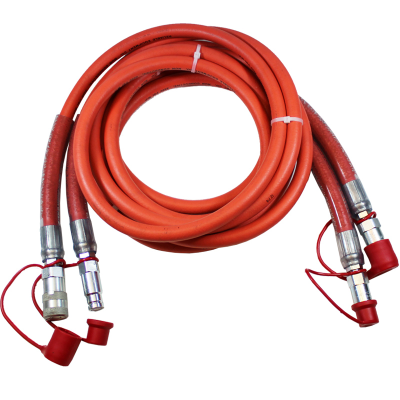

LP Hydraulic Hose Twin Orange 3m, Flush Face Couplers fitted
LP Hydraulic Hose Twin
Orange 3m, Flush Face
Couplers fitted
Code: REL-2250-3-O-TEN
Brand: Reliable
Product Details
Hose, LP, hydraulic, twin, orange, 3m, 120", flush face couplers, dust caps, Reliable
Brand: Reliable
Product Details
Hose, LP, hydraulic, twin, orange, 3m, 120", flush face couplers, dust caps, Reliable
- Twin low pressure flexible hydraulic hose
- Clear strain relief sleeve over crimped connections
- Manufactured for use in extreme temperatures -40°C to 100°C
- Certified non-conductive rubber
- Impulse tested higher than SAE requirements
- Supplied with flush face couplers both ends
- Neoprene inner tube with nitrile outer, reinforced two textile braid
| Part # | Colour | Length | Max Operating Pressure | Min Burst Pressure | Electrical Test | Hose ID | Weight |
|---|---|---|---|---|---|---|---|
| REL-2250-3-O-TEN | Orange | 3m | 2,250 PSI | 9,000 PSI | 75kV/3min (>100µA) | 9.5mm | 2.85kg |
| REL-2250-3-TEN | Red | 3m | 2,250 PSI | 9,000 PSI | 75kV/3min (>100µA) | 9.5mm | 2.85kg |
TEN is an authorised Reliable Equipment Service & Repair Centre with Workshops in QLD | WA | VIC
